System Description

SYSTEM

ENGINE PROTECTION CONTROL AT LOW ENGINE OIL PRESSURE : System Description

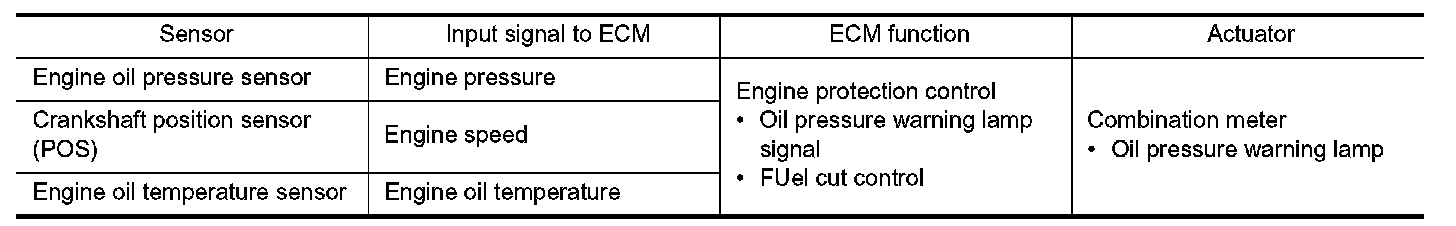

INPUT/OUTPUT SIGNAL CHART







SYSTEM DESCRIPTION

- The engine protection control at low engine oil pressure warns the driver of a decrease in engine oil pressure by the oil pressure warning lamp a before the engine becomes damaged.

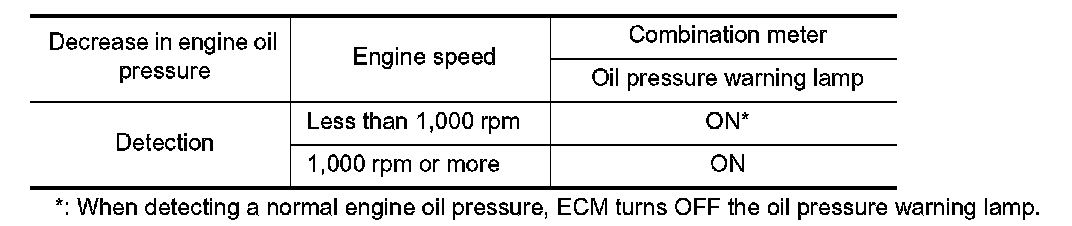

- When detecting a decrease in engine oil pressure at an engine speed less than 1,000 rpm, ECM transmits an oil pressure warning lamp signal to the combination meter.The combination meter turns ON the oil pressure warning lamp, according to the signal.
