Refilling

TRANSFER OIL

Refilling

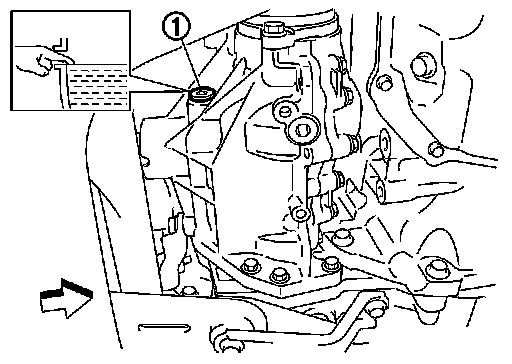

1.Remove filler plug (1) and gasket. Then fill oil up to mounting hole for the filler plug.

CAUTION:
Carefully fill the oil. (Fill up for approximately 3 minutes.)
2.Leave the vehicle for 3 minutes, and check the oil level again.
3.Before installing filler plug, set a new gasket. Install filler plug on transfer and tighten to the specified torque. Exploded View.

CAUTION:
Never reuse gasket.
