Draining

TRANSFER OIL

Draining

1.Run the vehicle to warm up the transfer unit sufficiently.

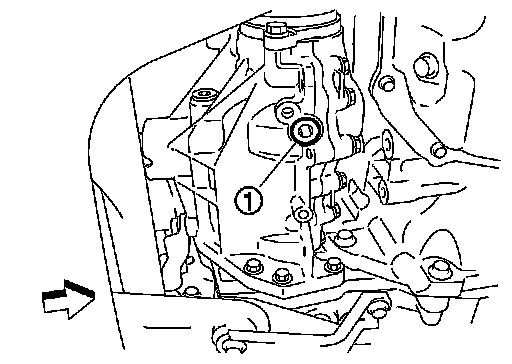

2.Stop the engine and remove the drain plug (1) and gasket to drain the transfer oil.

White arrow indicates : Vehicle front

3.Before installing drain plug, set a new gasket. Install drain plug on the transfer and tighten to the specified torque. Exploded View.

CAUTION:
Never reuse gasket.
