Trunk Light Bulb: Service and Repair

LUGGAGE ROOM LAMP

Replacement


CAUTION:
- Disconnect the battery cable from negative terminal or remove the fuse.
- Never touch the glass of bulb directly by hand. Keep grease and other oily substances away from it.
Never touch bulb by hand while it is lit or right after it is off.
- Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect the performance of lamp. When replacing bulb, be sure to replace it with a new one.

LUGGAGE ROOM LAMP BULB

1.Remove the luggage room lamp.

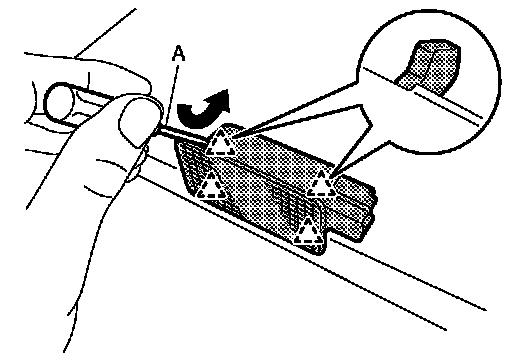

2.Insert a remover tool (A) into the gap between the lens and bulb housing, and then disengage fixing pawls as shown by the arrow in the figure.

Broken triangle indicates : Pawl

3.Remove the bulb.
