Interior Lighting System Symptoms




INTERIOR LIGHTING SYSTEM SYMPTOMS

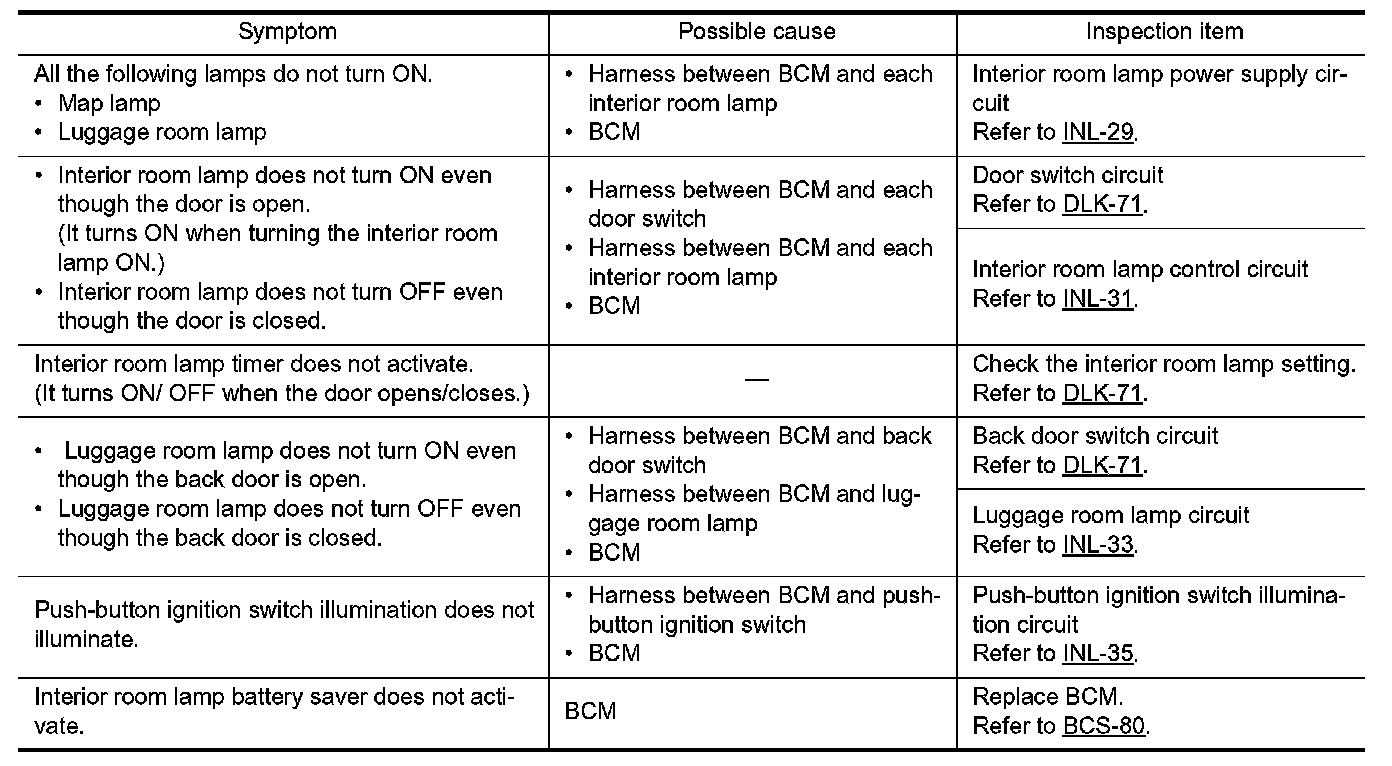

Symptom Table

NOTE:
Perform the self-diagnosis with CONSULT before the symptom diagnosis. Perform the trouble diagnosis if any
DTC is detected.
