Home >> Nissan-Datsun >> 2012 >> Juke AWD L4-1.6L Turbo (MR16DDT) >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Scan Tool Testing and Procedures >> Interior Lighting >> Battery Saver >> Without Intelligent Key System

Without Intelligent Key System




DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)

BATTERY SAVER : CONSULT Function (BCM - BATTERY SAVER)

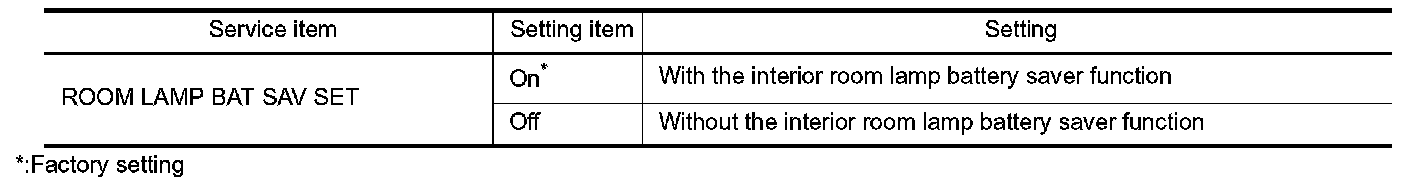

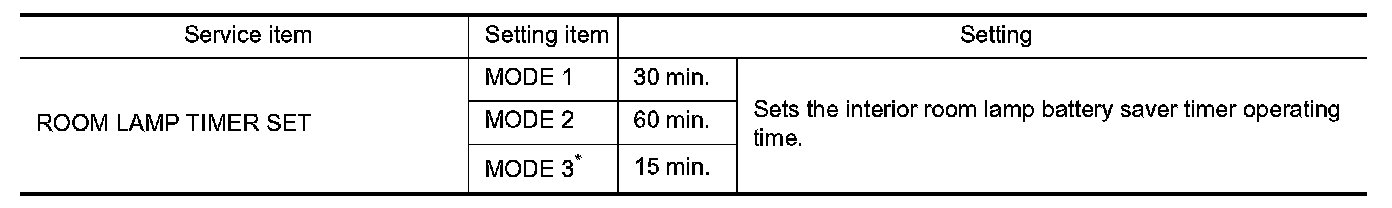

WORK SUPPORT

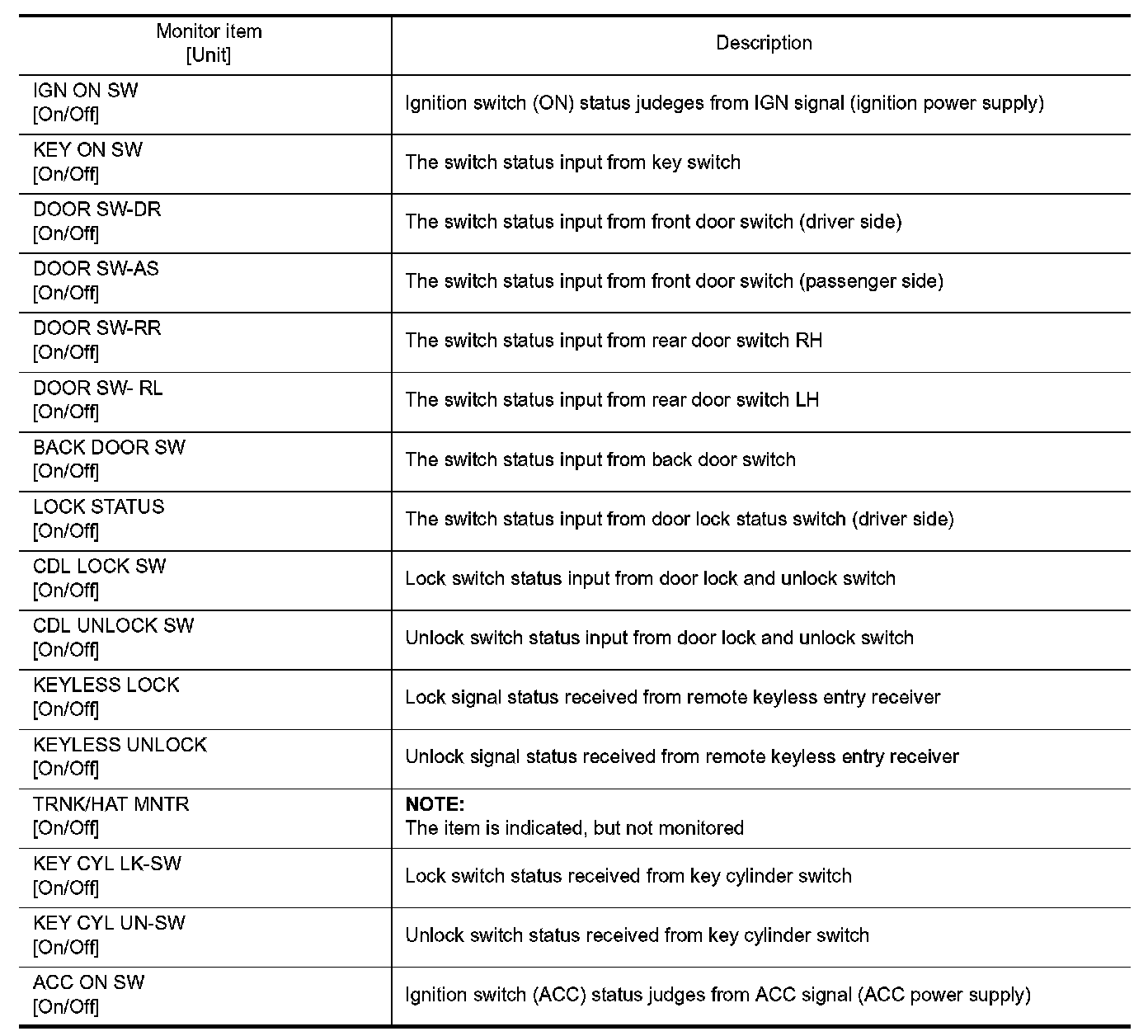

DATA MONITOR

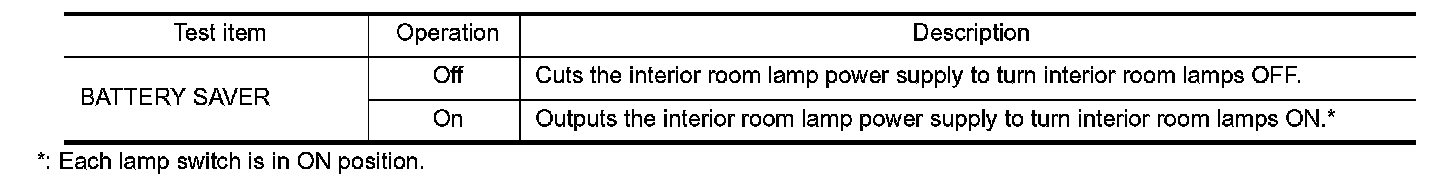

ACTIVE TEST
