IPDM E/R) (Without Intelligent Key System)

DIAGNOSIS SYSTEM (IPDM E/R) (WITHOUT INTELLIGENT KEY SYSTEM)

CONSULT Function (IPDM E/R)

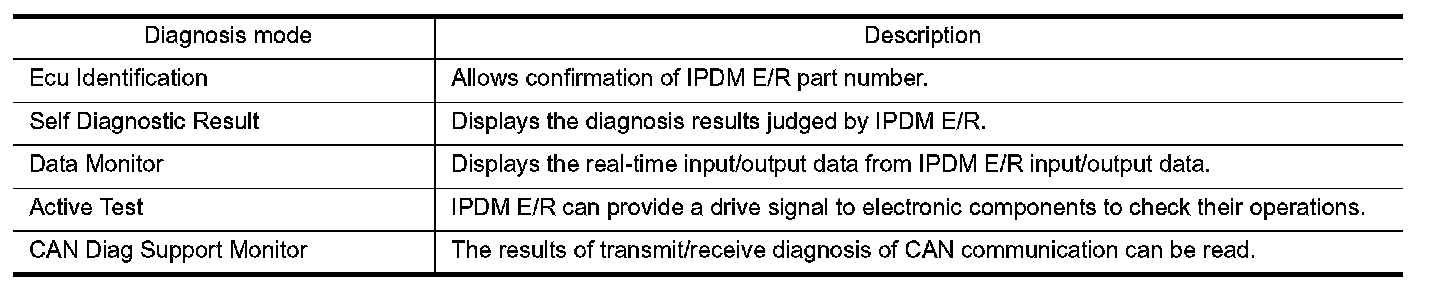

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with IPDM E/R.






SELF DIAGNOSTIC RESULT

Testing and Inspection.

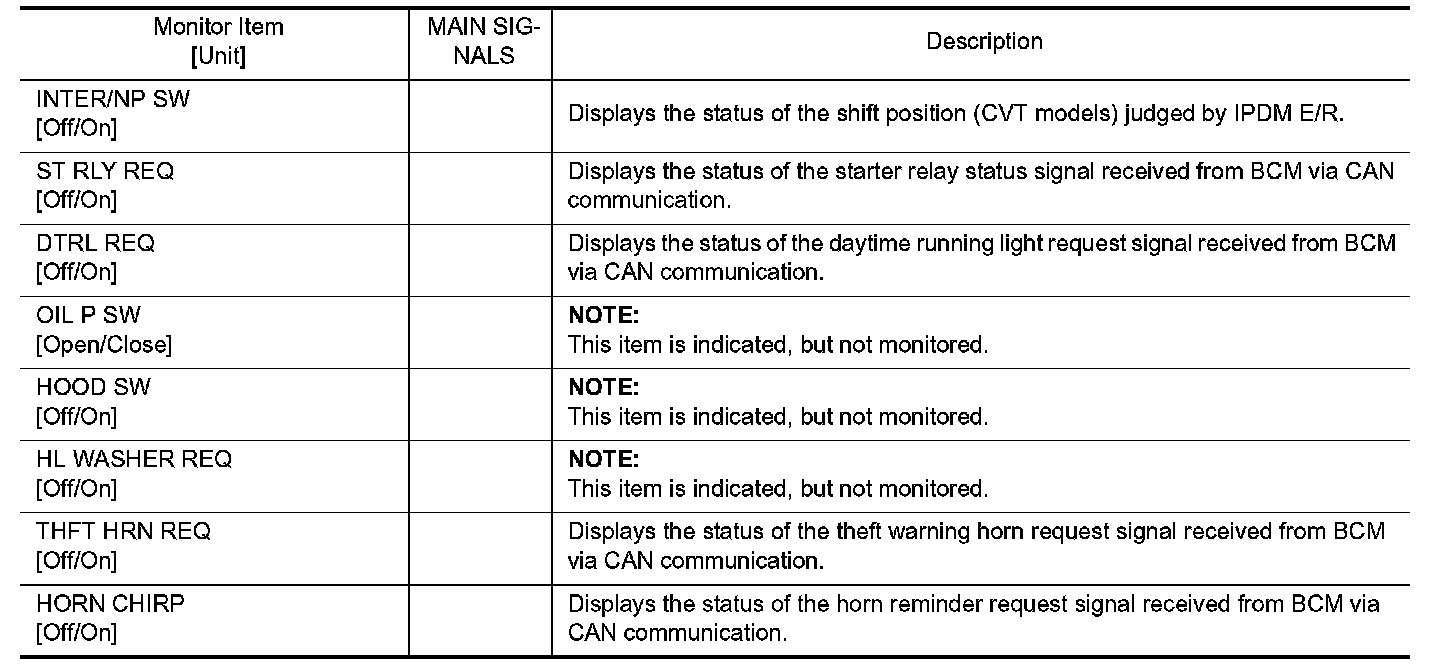

DATA MONITOR

Monitor item

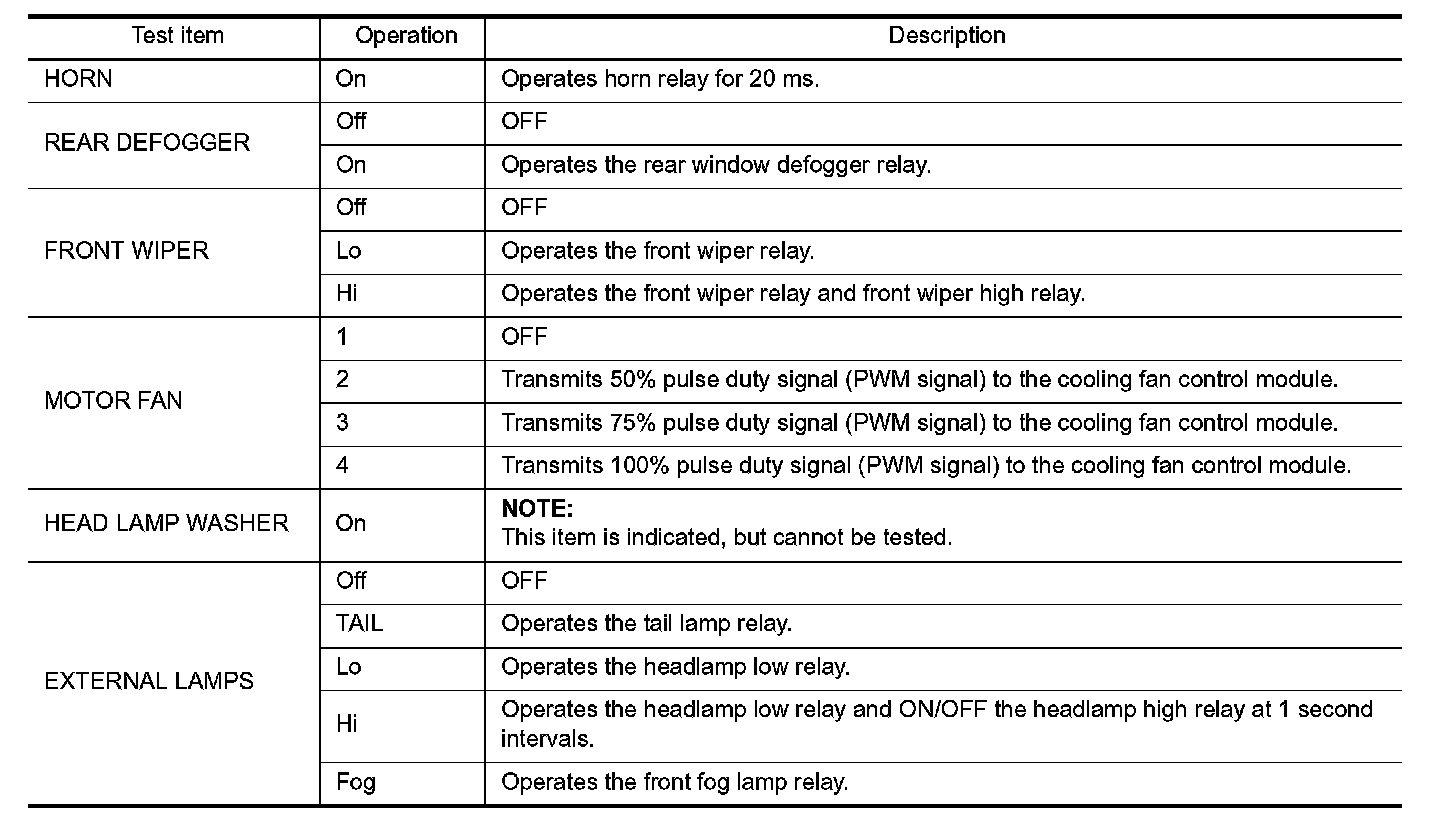

ACTIVE TEST

Test item
