With Intelligent Key System




DIAGNOSIS SYSTEM (BCM) (WITH INTELLIGENT KEY SYSTEM)

HEADLAMP : CONSULT Function (BCM - HEAD LAMP)

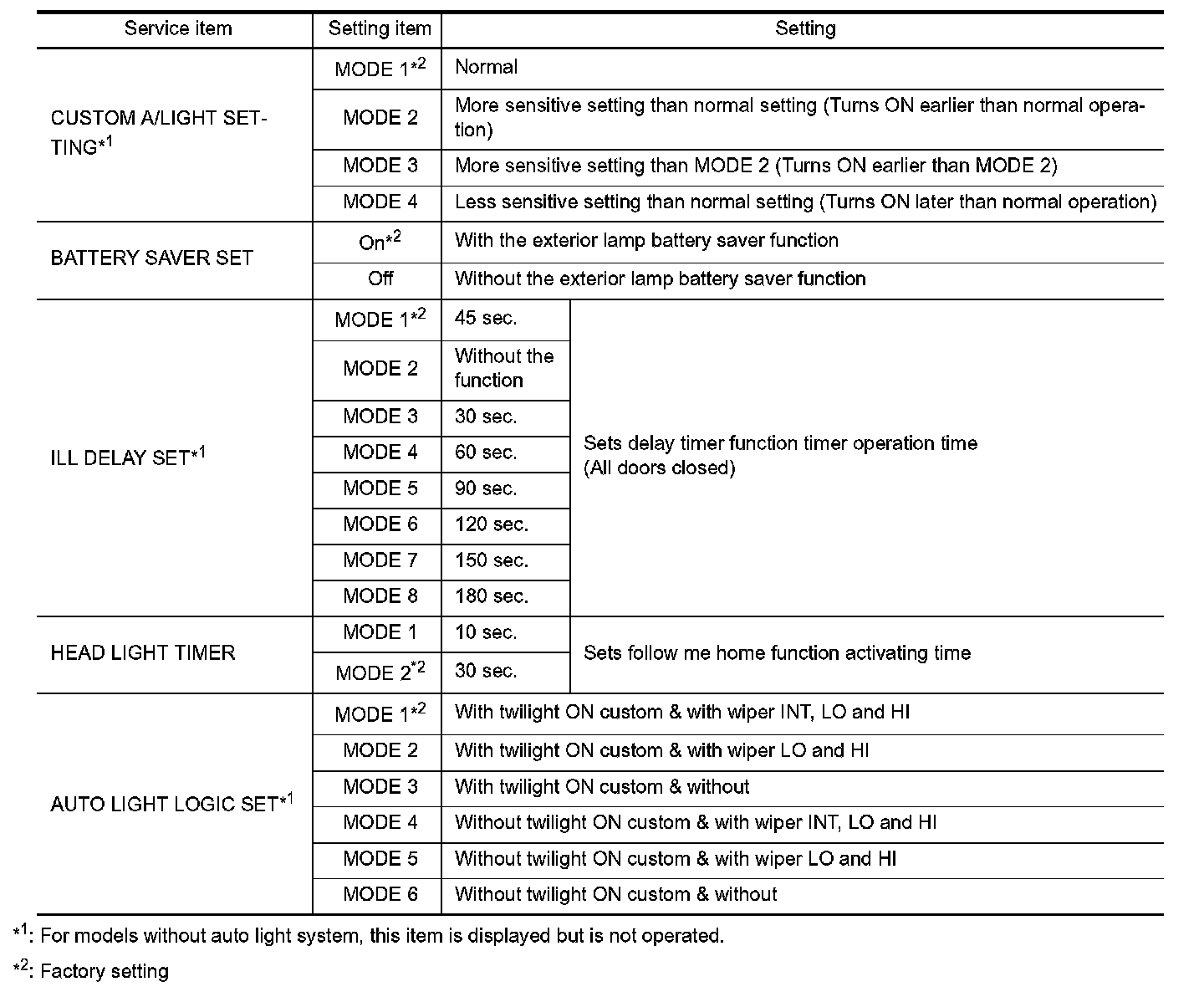

WORK SUPPORT

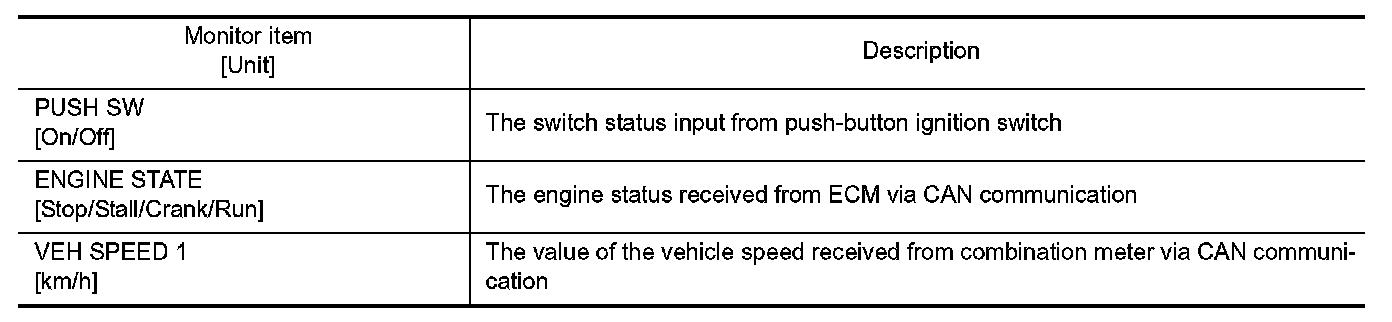

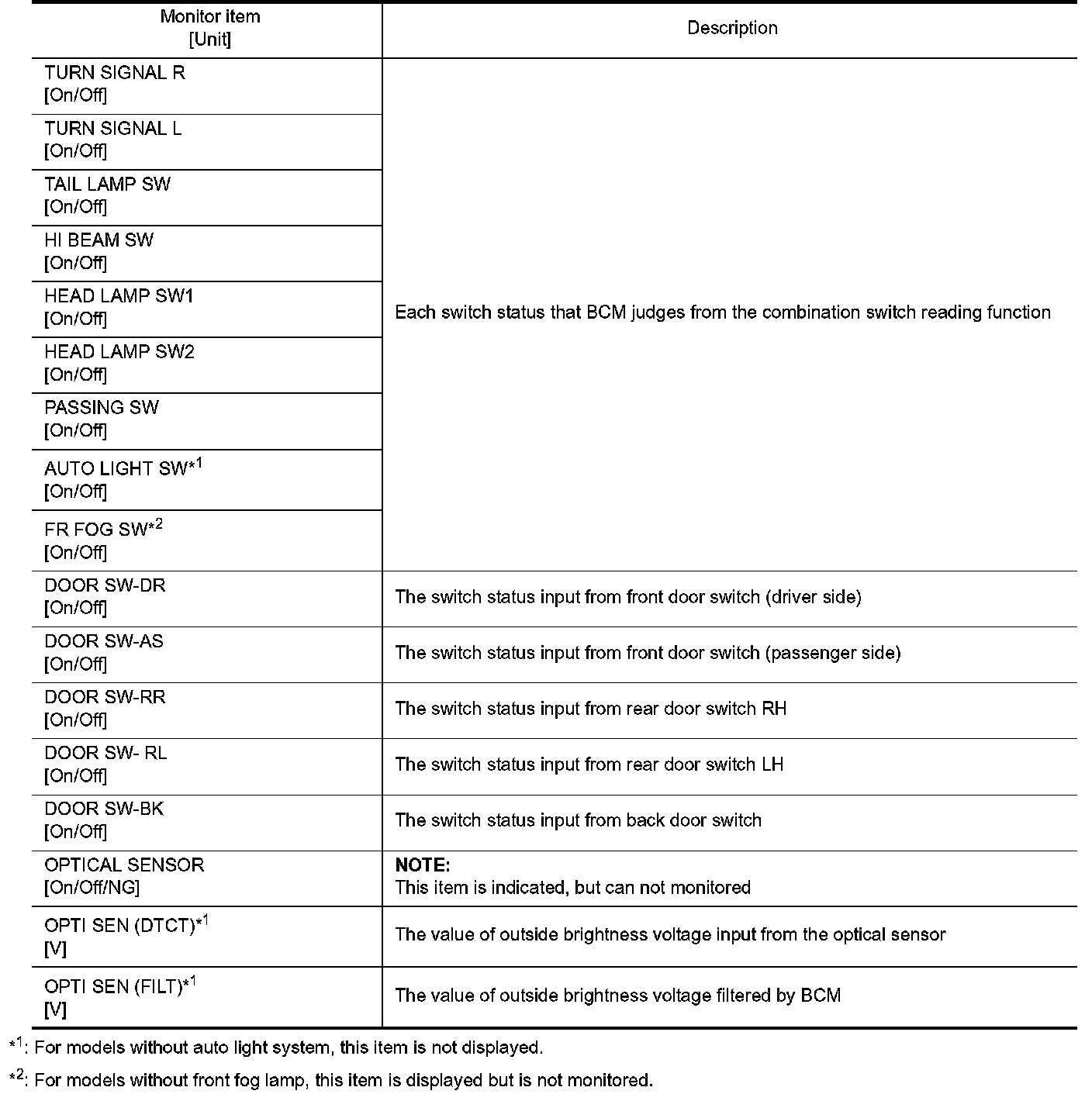

DATA MONITOR

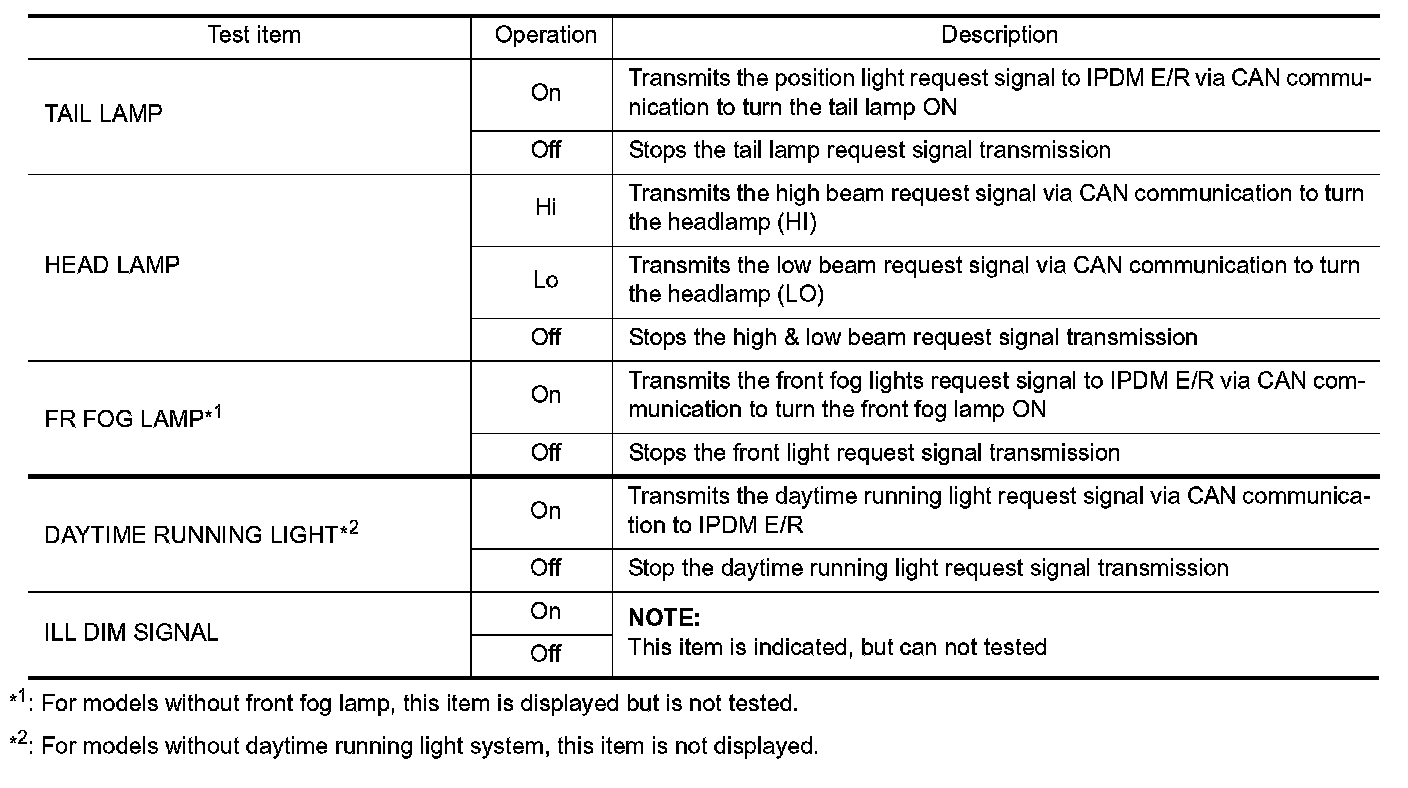

ACTIVE TEST
