With Intelligent Key System




DIAGNOSIS SYSTEM (BCM) (WITH INTELLIGENT KEY SYSTEM)

FLASHER : CONSULT Function (BCM - FLASHER)

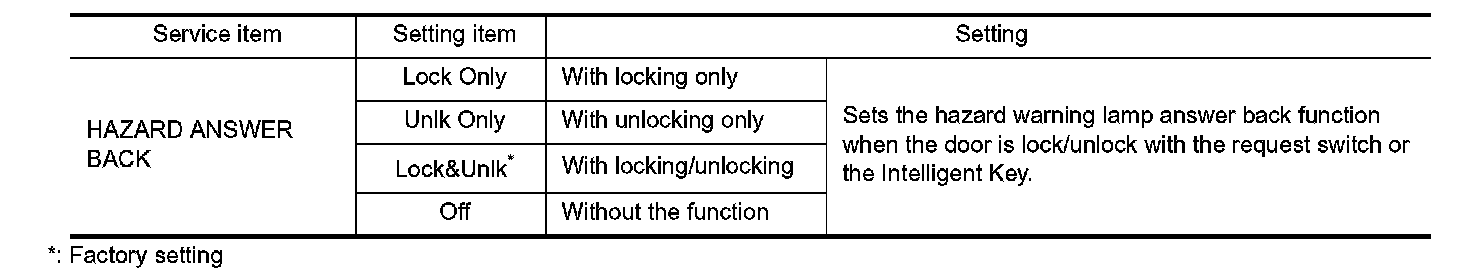

WORK SUPPORT

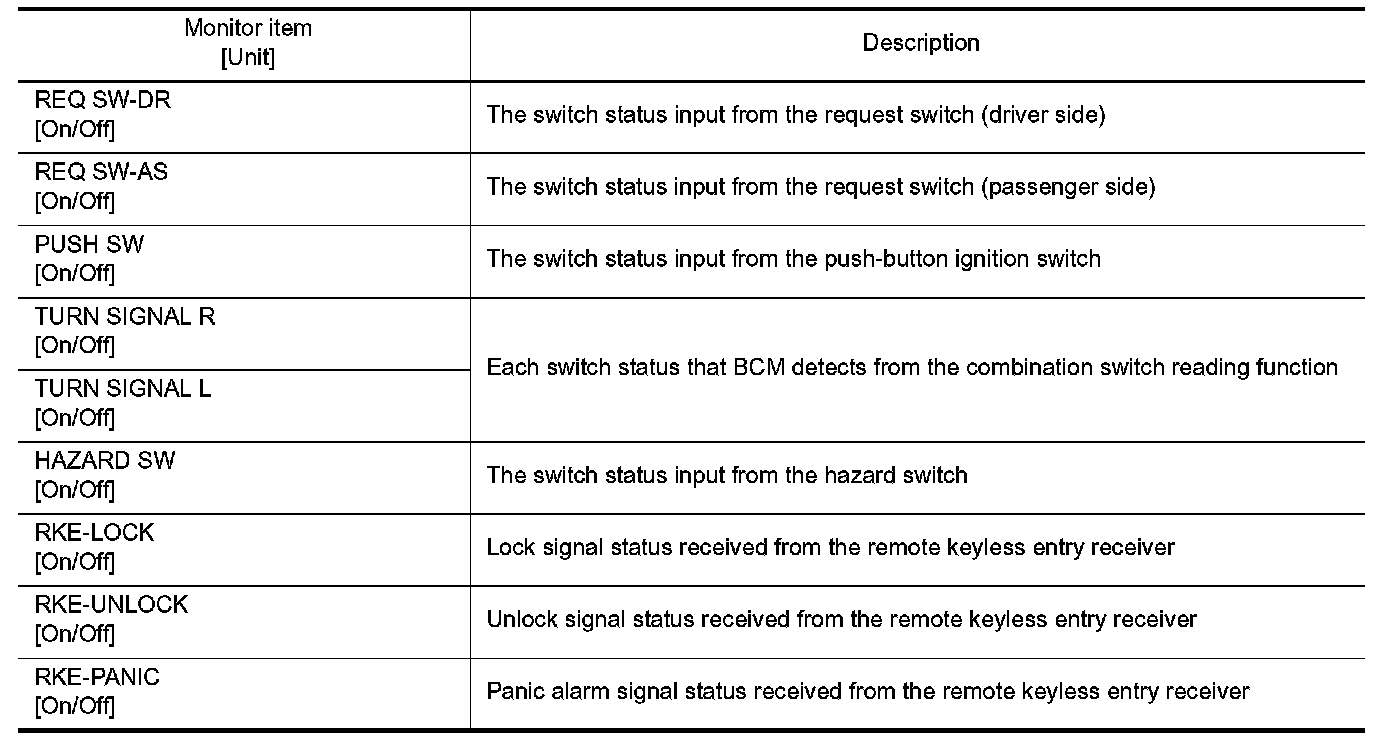

DATA MONITOR

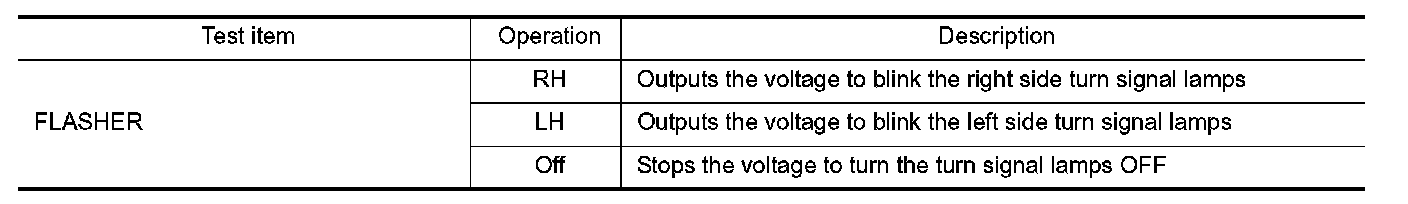

ACTIVE TEST
