Without Intelligent Key System




DIAGNOSIS SYSTEM (BCM)

BATTERY SAVER : CONSULT Function (BCM - BATTERY SAVER)

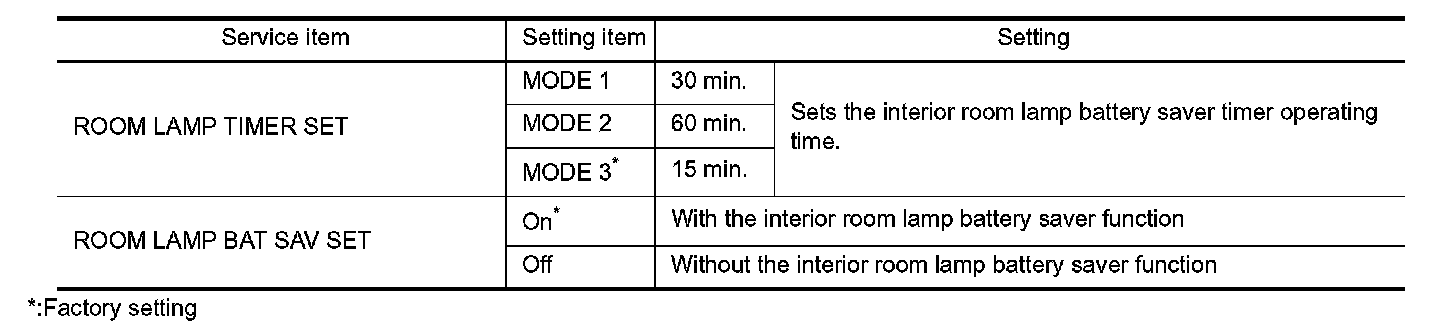

WORK SUPPORT

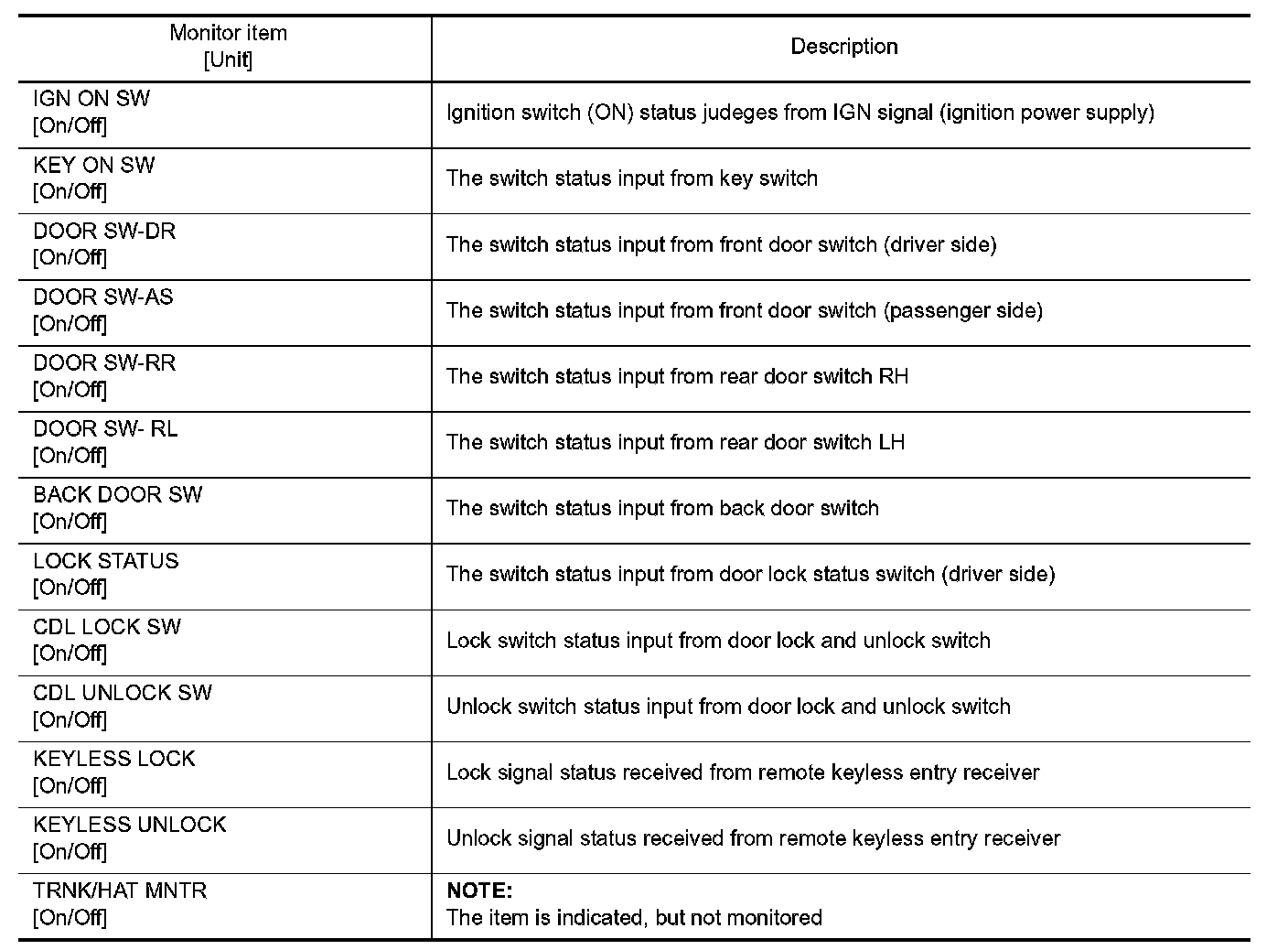

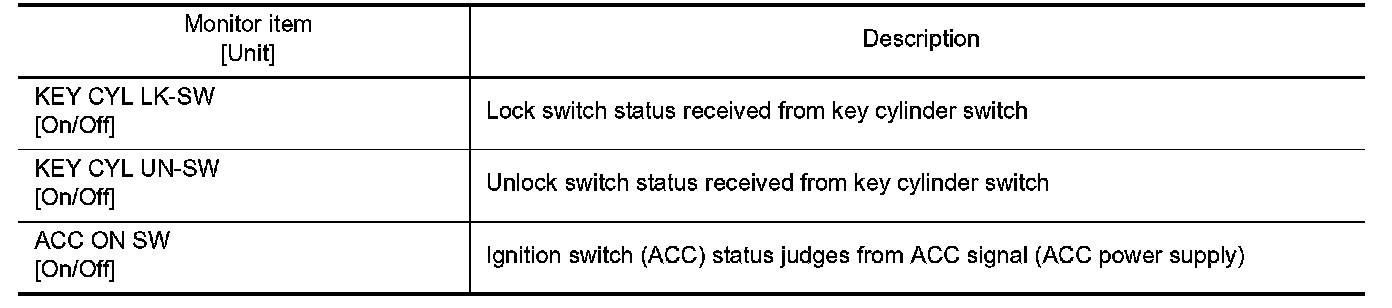

DATA MONITOR

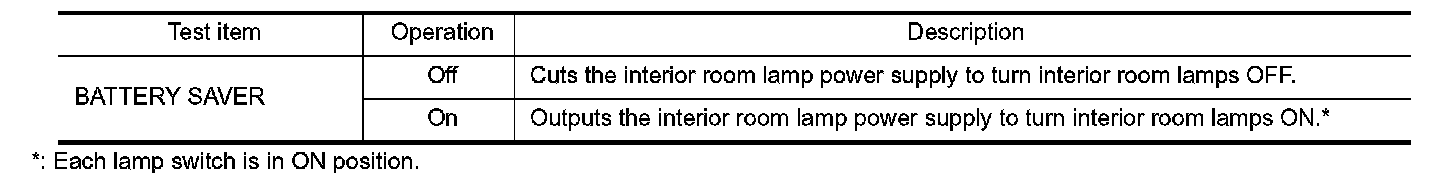

ACTIVE TEST
