Without Daytime Running Light System

HEADLAMP GROUND CIRCUIT

WITHOUT DAYTIME RUNNING LIGHT SYSTEM : Diagnosis Procedure


1. CHECK HEADLAMP GROUND OPEN CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect headlamp connector.

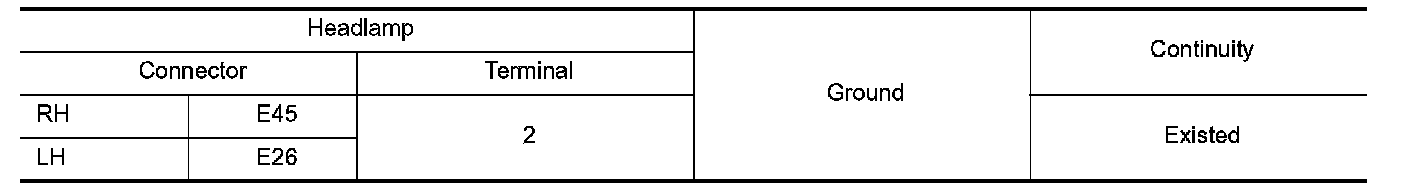

3.Check continuity between headlamp harness connector and ground.





Is the inspection result normal?
YES- Headlamp ground circuit is normal.
NO- Repair or replace harness.
