Symptom Related Diagnostic Procedures

PARKING, LICENSE PLATE, SIDE MARKER AND TAIL LAMPS ARE NOT TURNED ON

Description

The parking, license plate, tail, rear side marker lamps and each illumination are not turned ON in any condition.


Diagnosis Procedure


1. COMBINATION SWITCH INSPECTION

Check combination switch. With Intelligent Key System.
Is the combination switch normal?
YES- GO TO 2.
NO- Repair or replace the malfunctioning part.

2. CHECK TAIL LAMP RELAY REQUEST SIGNAL INPUT

CONSULT DATA MONITOR

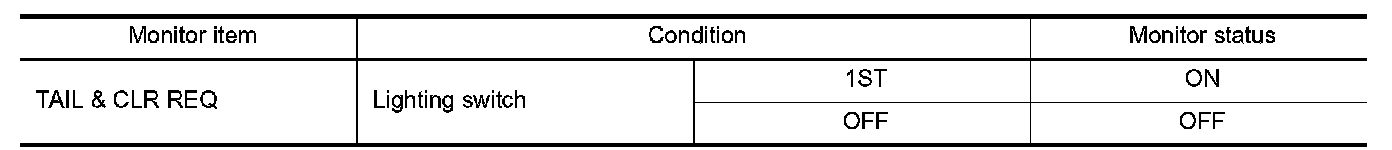

1.Select "TAIL & CLR REQ" of IPDM E/R data monitor item.
2.With operating the lighting switch, check the monitor status.





Is the item status normal?
YES- Replace IPDM E/R.
NO- Replace BCM. With Intelligent Key System (with Intelligent Key), Service and Repair (without Intelligent Key).
