Low Tire Pressure Warning Lamp Blinks

LOW TIRE PRESSURE WARNING LAMP BLINKS

Description

The low tire pressure warning lamp blinks when the ignition switch is turned ON.
NOTE:

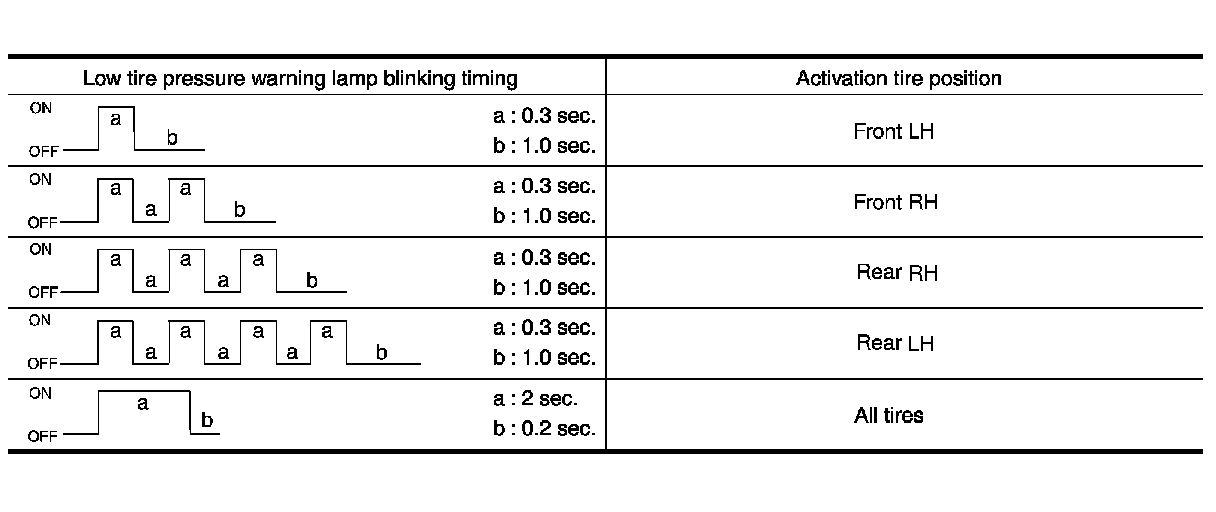

The position of an inactive tire pressure sensor can be identified by checking the blinking timing of the low tire pressure warning lamp.







Diagnosis Procedure


1. TIRE PRESSURE SENSOR ID REGISTRATION

Perform tire pressure sensor ID registration. Work Procedure.
Is tire pressure sensor ID registration completed?
YES- INSPECTION END
NO- Perform the self-diagnosis for "AIR PRESSURE MONITOR". Testing and Inspection (With intelligent key system), Testing and Inspection (Without intelligent key system).
