Meter System




SYSTEM

METER SYSTEM : Fail-Safe

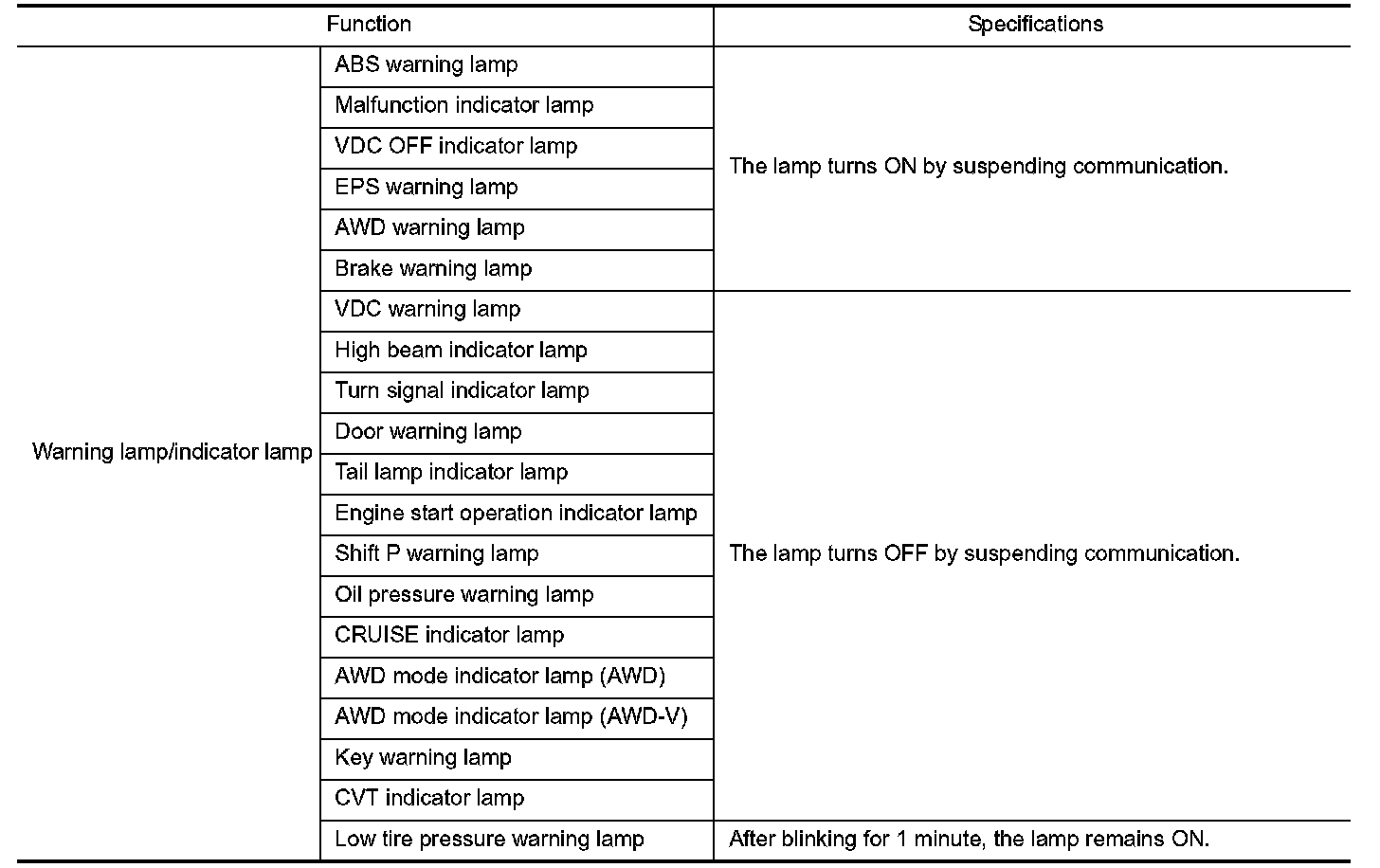

FAIL-SAFE

The combination meter activates the fail-safe control if CAN communication with each unit is malfunctioning.
