Warning Chime System




SYSTEM

WARNING CHIME SYSTEM : Fail-Safe


FAIL-SAFE

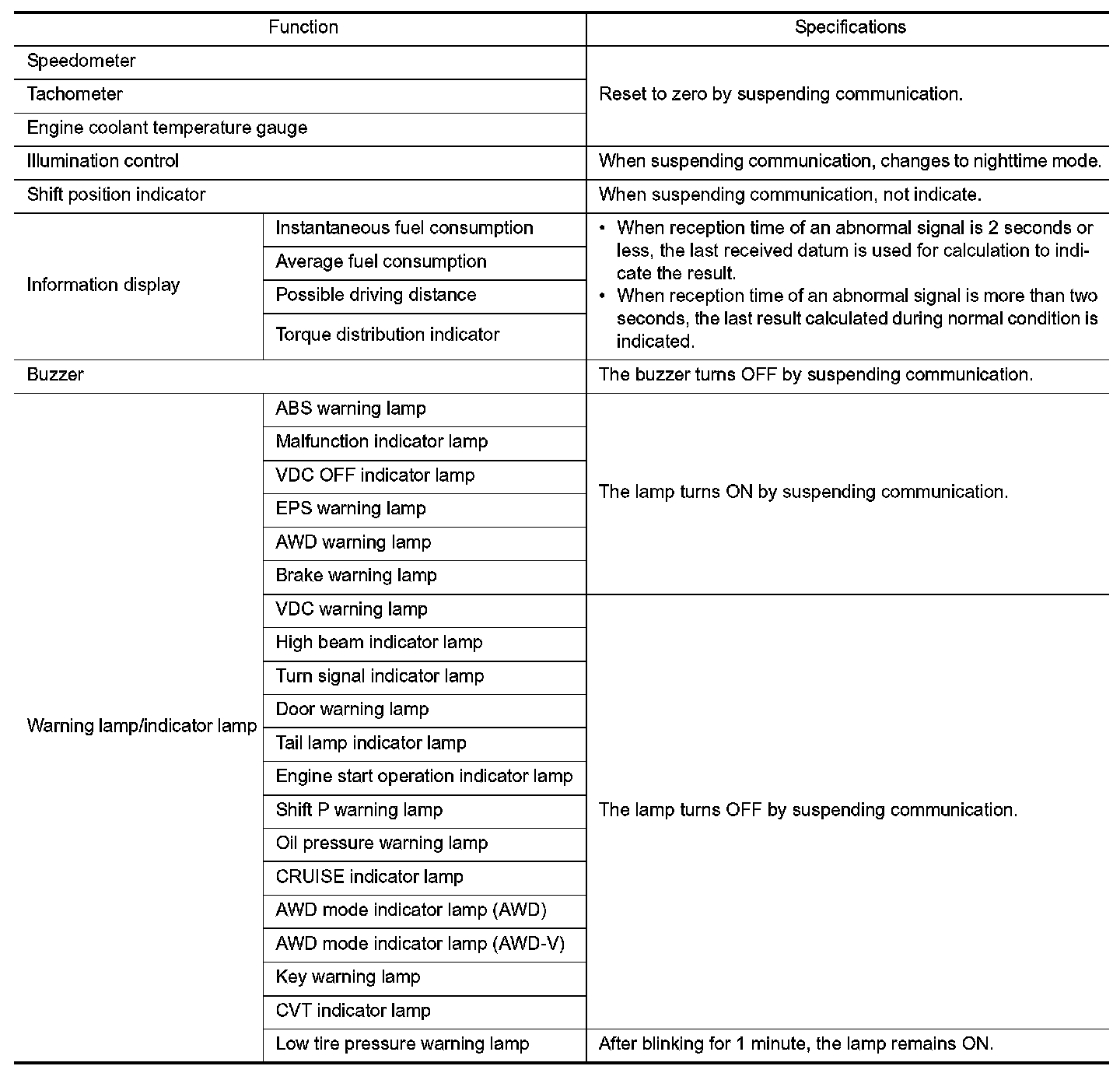

The combination meter activates the fail-safe control if CAN communication with each unit is malfunctioning.
