Disassembly And Assembly

COMBINATION METER

Disassembly and Assembly


DISASSEMBLY

1.Disengage the pawls (2 on the sides, 3 on the lower part) of the combination meter.

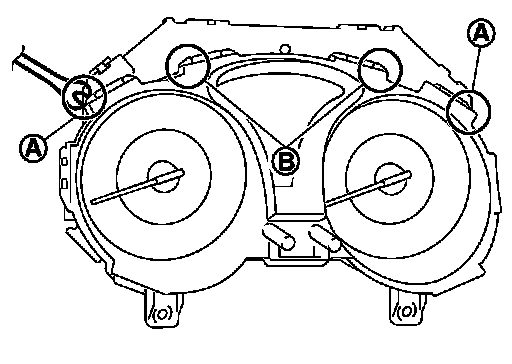

2.Insert the removal tool into the clearance (in the order of A, B)
between the front cover and the meter control unit. Remove 4
pawls on the upper side of the front cover by turning the tool while increasing the clearance.

CAUTION:
Wrap the removal tools with protective tape to prevent scratches.
3.Pull the front cover straight to remove it from the meter control unit assembly.

CAUTION:
Never damage the front cover.
Never touch the pointer and the crystalline liquid.

ASSEMBLY

Install the front cover straight to the meter control unit assembly and engage all the pawl.

CAUTION:
Never damage the front cover.
