LIGHT REMINDER WARNING CHIME : System Description


WARNING CHIME OPERATION CONDITIONS

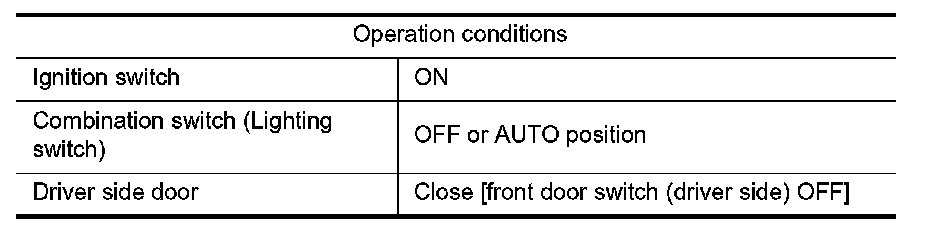

If all of the following conditions are fulfilled.






WARNING CHIME CANCEL CONDITIONS

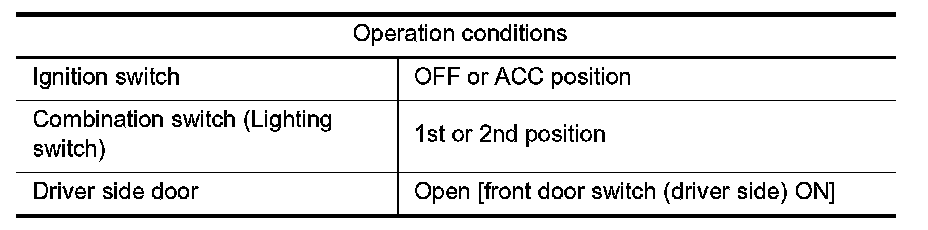

Warning is canceled if any of the following conditions is fulfilled.






SIGNAL PATH

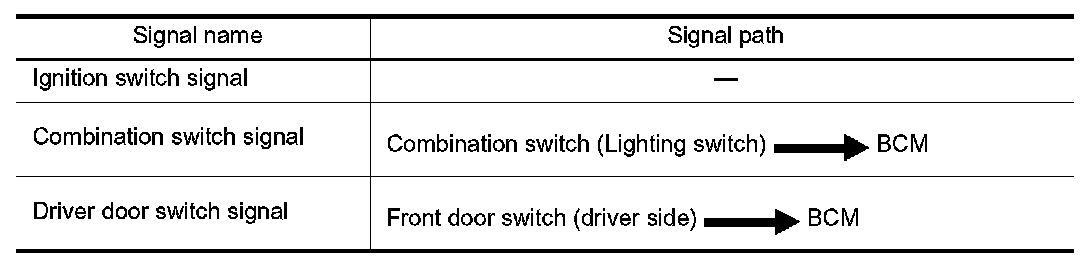

1.BCM requires warning chime output to combination meter when it judges light reminder warning chime is necessary from signals below.

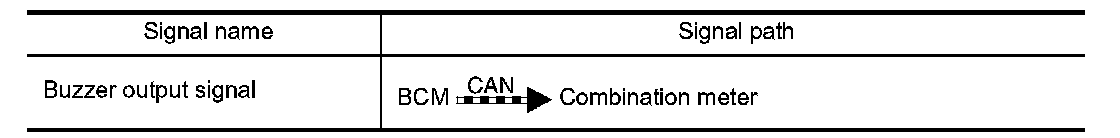

2.Combination meter sounds integrated buzzer, following the warning chime output requirement (below signal) from BCM.

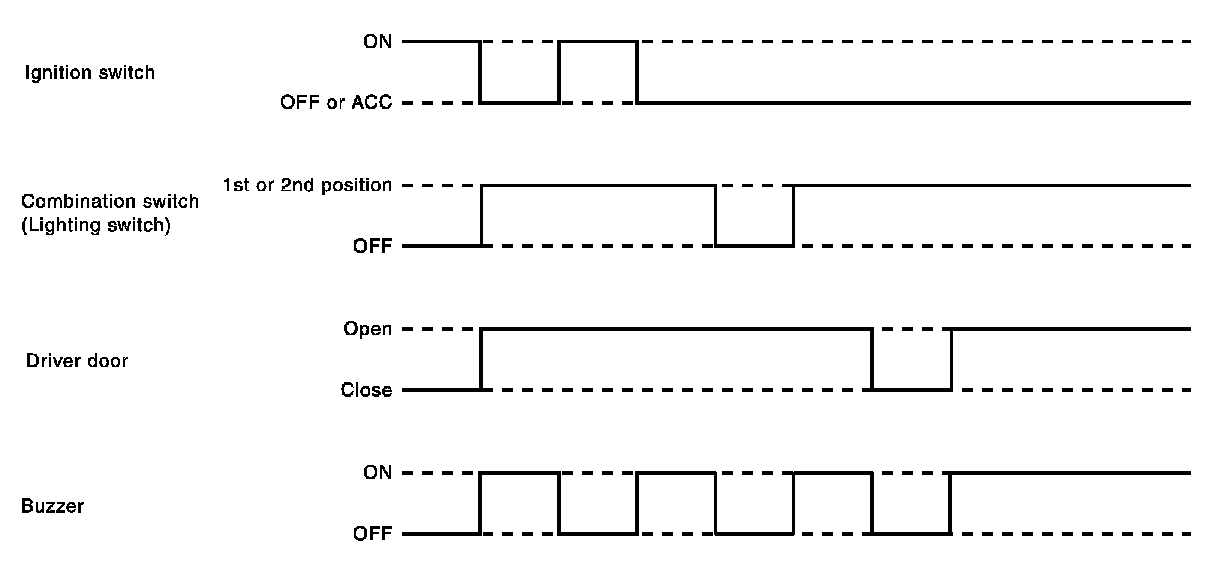

TIMING CHART
