Nissan-Datsun
>>
2012
>>
Juke AWD L4-1.6L Turbo (MR16DDT)
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Description and Operation
>>
Key Warning Chime
>>
System Diagram
System Diagram
SYSTEM

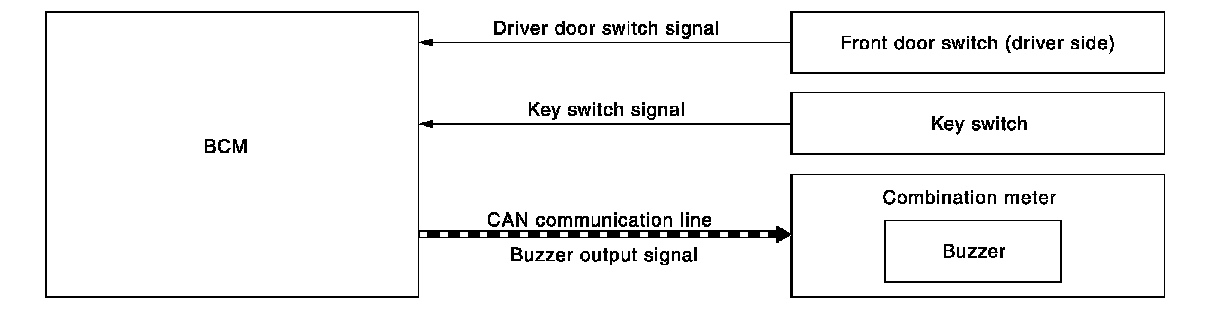

KEY WARNING CHIME : System Diagram
