Combination Meter




COMPONENT PARTS

Combination Meter

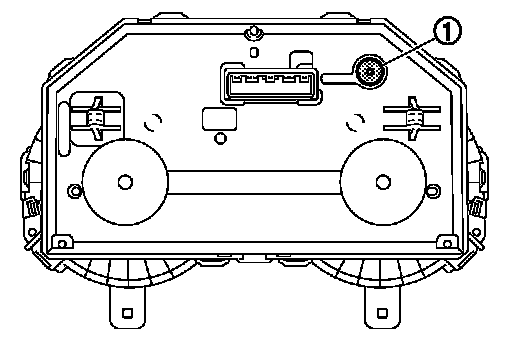

The buzzer (1) for the warning chime system is integrated in the combination meter.
