Door Control

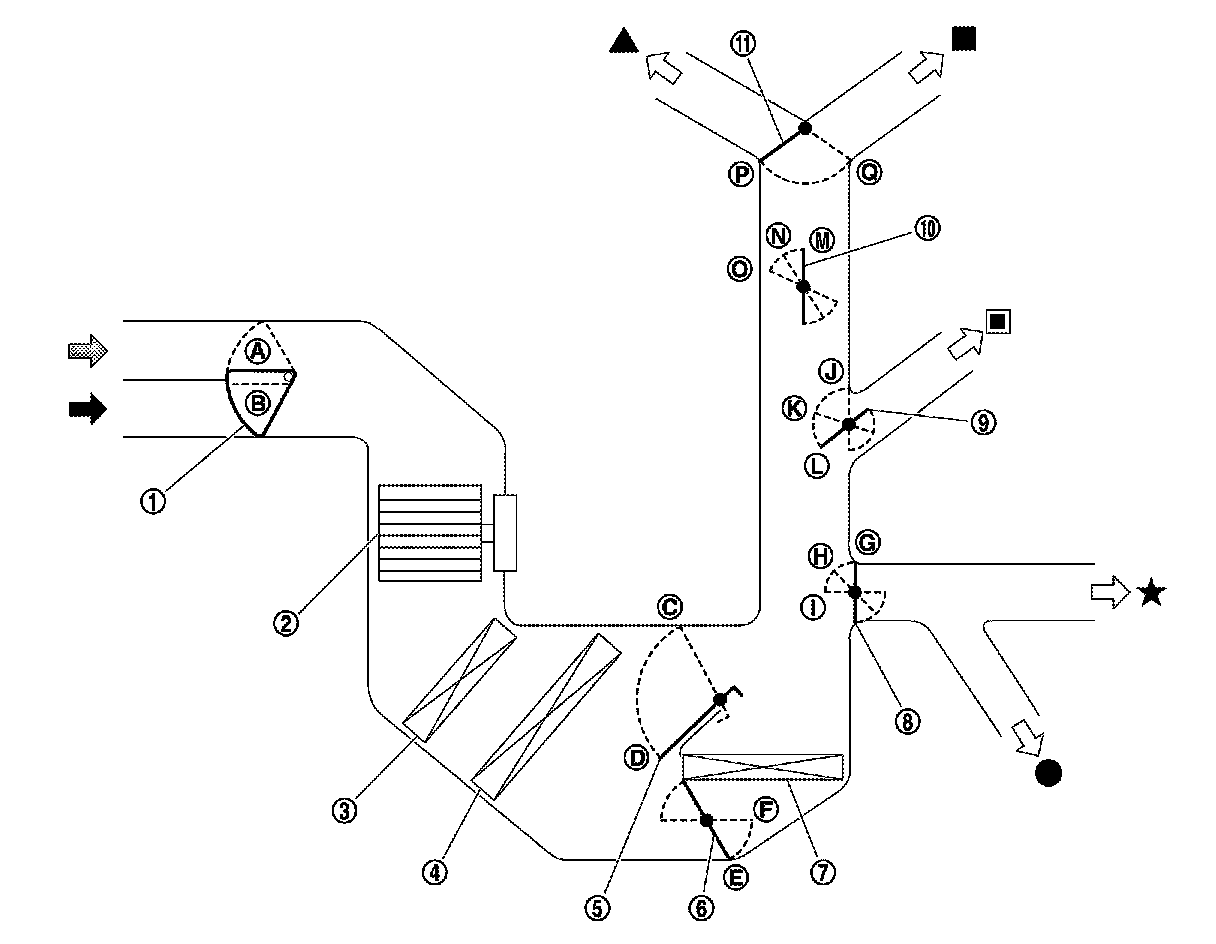

SYSTEM

Door Control

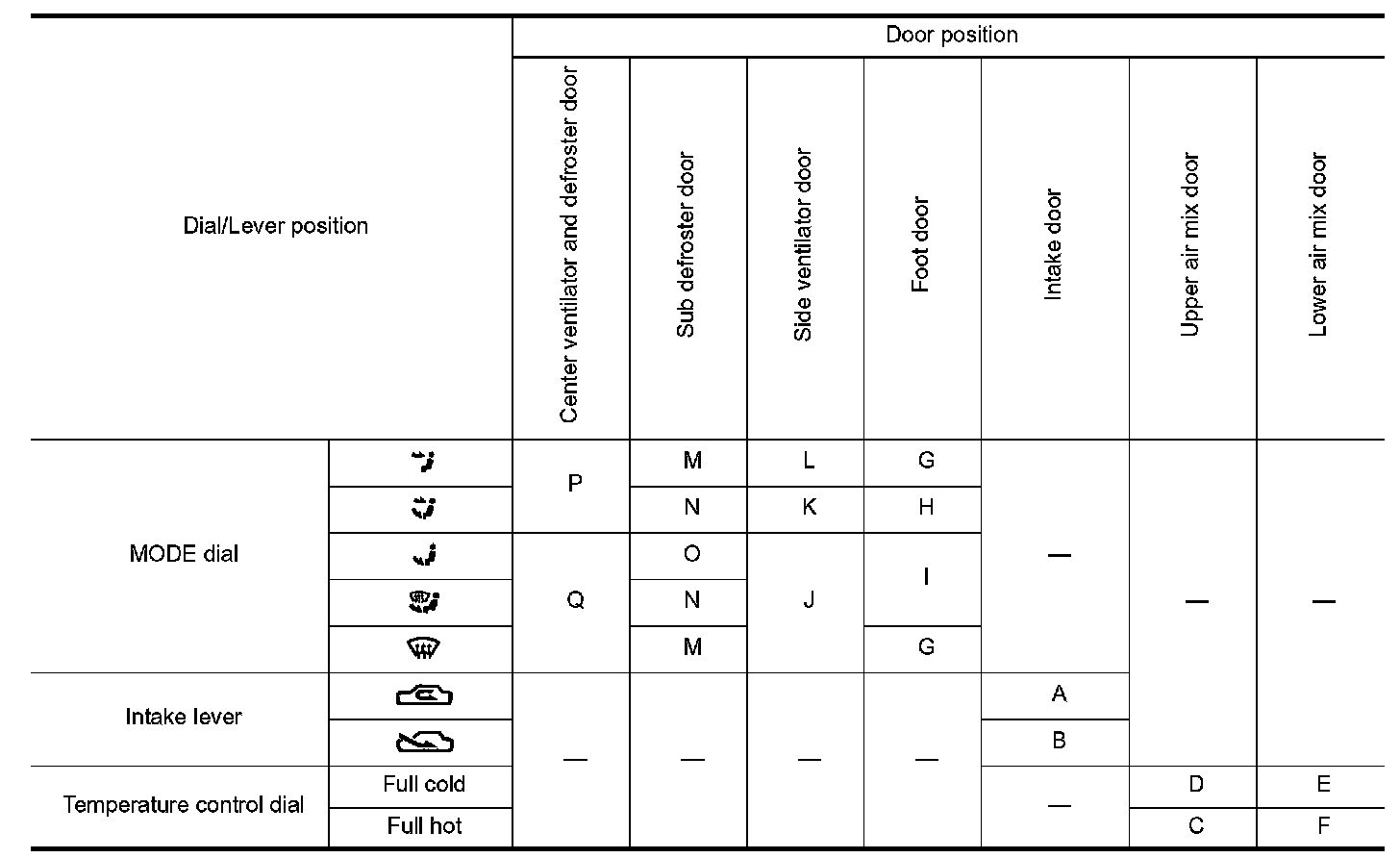

SWITCHES AND THEIR CONTROL FUNCTIONS

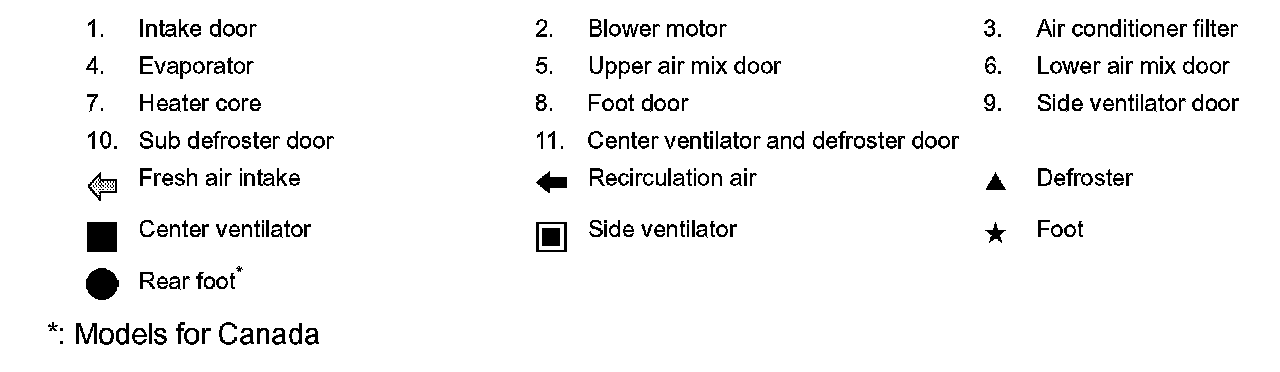

*: Models for Canada






AIR DISTRIBUTION

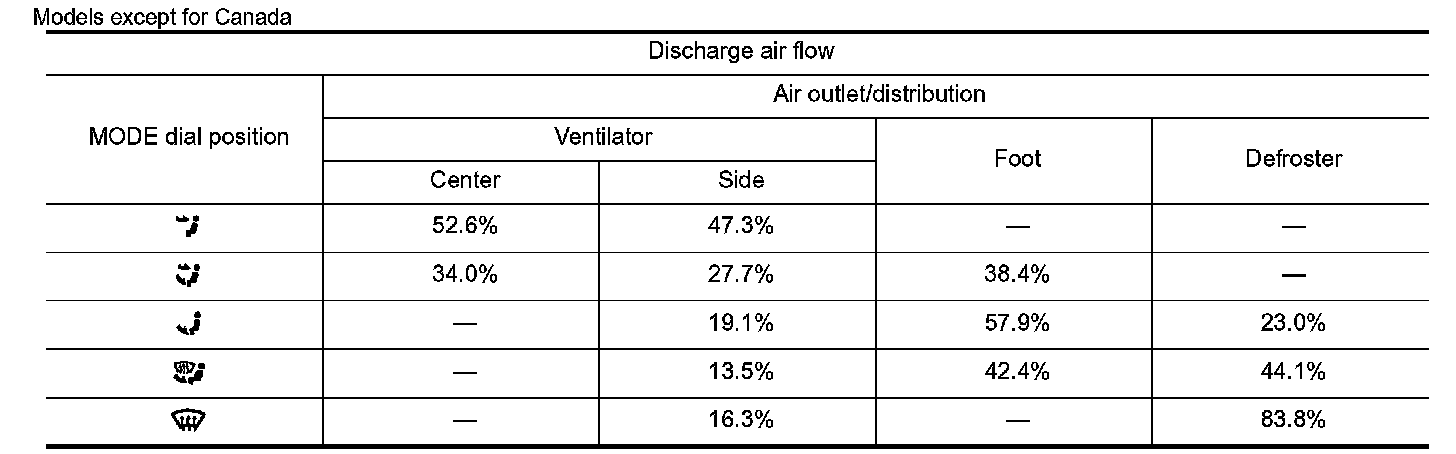

Models except for Canada

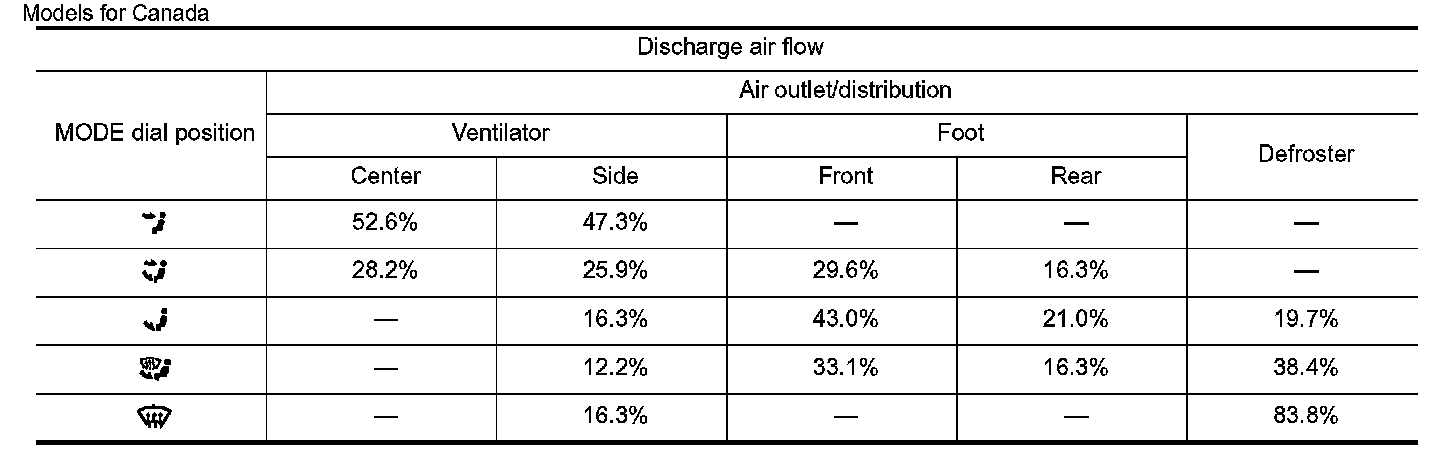

Models for Canada
