Air Inlet Control

SYSTEM

Air Inlet Control

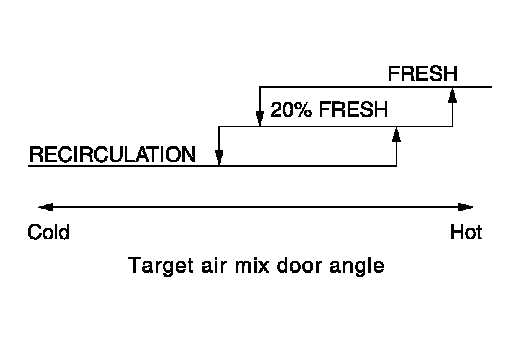

- While air inlet is in automatic control, A/C auto amp. selects air inlet (fresh air intake, 20% fresh air intake, or recirculation)
depending on set temperature, in-vehicle temperature, and ambient temperature.
- Air inlet is fixed to 80% FRE, only when the conditions are satisfied as follows:
- Air inlet is FOOT or D/F
- Ambient temperature is 2�C (36�F) or less
- Maximum fan speed
