Removal And Installation

BLOWER MOTOR

Removal and Installation


WARNING:
- Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes or more.
- Always work from the side of air bag module. Never work in front of it.
- Never use the air tools or the electric tools for servicing.

REMOVAL

1.Remove glove box assembly. Removal And Installation.

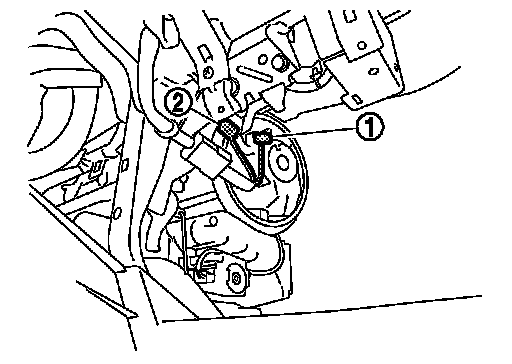

2.Disconnect blower motor harness connector (1) and front passenger air bag module harness connector (2).
3.Remove front passenger air bag module. Removal And Installation.





4.Press flange holding hook (A), and then turn blower motor (1)
clockwise.
5.Pull outside, and then remove blower motor.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:
- Never use the old mounting bolts after removal, replace with the new bolts.
- Never damage the harness while installing.
- If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunctioning parts, reset the memory using self-diagnosis or CONSULT-III. On Board Diagnosis Function or Supplemental Restraints.
- After the work is completed, check that no system malfunction is detected by air bag warning lamp.
