Center Ventilator Grille

DUCT AND GRILLE

CENTER VENTILATOR GRILLE : Removal and Installation


REMOVAL

1.Remove cluster lid C. Removal And Installation.

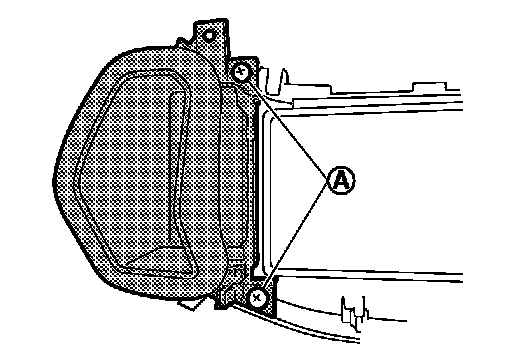

2.Remove fixing screws (A).

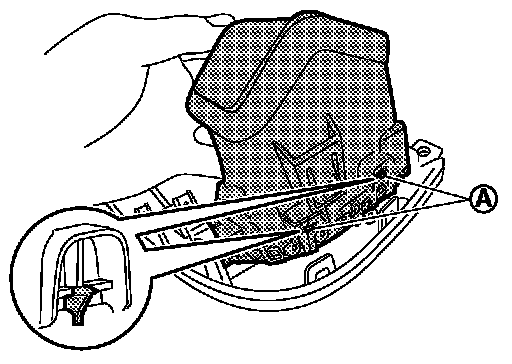

3.Disengage fixing pawls (A), and then remove center ventilator grille.

INSTALLATION

Install in the reverse order of removal.
