Removal And Installation




EXHAUST MANIFOLD

Removal and Installation


REMOVAL

1.Drain engine coolant. Draining Engine Coolant.
2.Remove front tube. Exploded View.
3.Remove turbocharger. Exploded View.
4.Remove exhaust manifold cover.
5.Remove exhaust manifold.





- Loosen nuts in reverse order as shown in the figure.

White arrow indicates : Engine front

NOTE:
Disregard the numerical order No. 9 to 12 in removal.

6.Remove gasket.

CAUTION:
Cover engine openings to avoid entry of foreign materials.

INSTALLATION

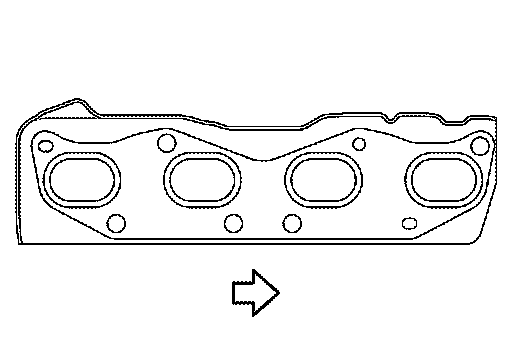

1.Install gasket to cylinder head as shown in the figure.

White arrow indicates : Engine front

2.Install exhaust manifold with the following procedure:

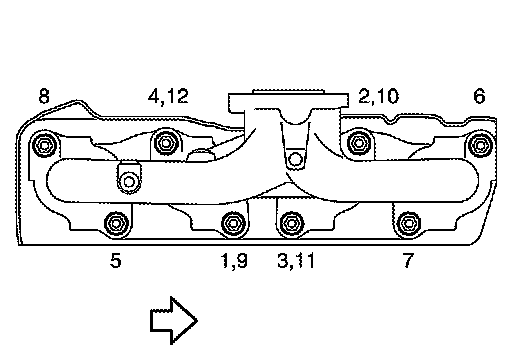

a.Tighten nuts in numerical order as shown in the figure.

White arrow indicates : Engine front

NOTE:
- Tighten nuts the No.1 to No.4 in two steps.
- The numerical order No.9 to No.12 shows the second step.

3.Install remaining parts in the reverse order of removal.
