Inspection

EXHAUST MANIFOLD

Inspection


INSPECTION AFTER REMOVAL

Surface Distortion

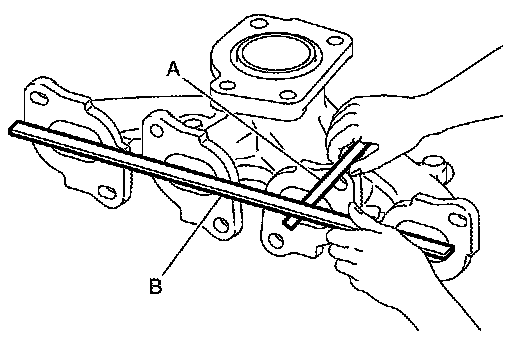

- Using feeler gauge (A) and straightedge (B), check the surface distortion of exhaust manifold mating surface in each exhaust port and entire part.
Limit: [1][2]Exhaust Manifold.
- If it exceeds the limit, replace exhaust manifold.
