Procedures

ENGINE STAND SETTING

Setting

NOTE:
Explained here is how to disassemble with engine stand supporting transaxle surface. When using different type of engine stand, note with difference in steps and etc.
1.Remove the engine and the transaxle assembly from the vehicle, and separate the transaxle from the engine. Removal And Installation (2WD models) or "4WD (AWD) :
Removal and Installation" (4WD models).
2.Install engine to engine stand with the following procedure:
a.Remove flywheel (M/T models) or drive plate (CVT models).

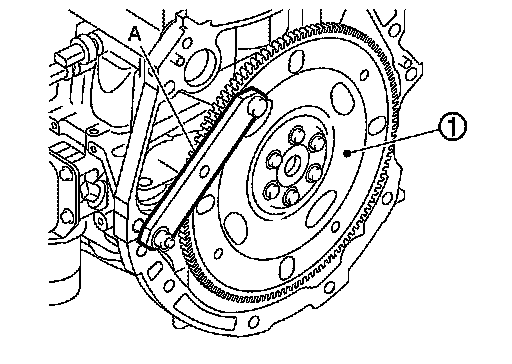

- Secure flywheel (M/T models) or drive plate (CVT models) (1)
with a stopper plate [SST: KV-11105210 (J-44716)] (A), and remove mounting bolts.
NOTE:
This figure shows CVT models as an example.

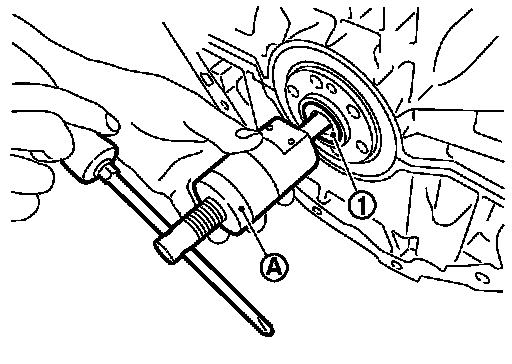

b.Remove pilot converter (1) (CVT models) or pilot bush (M/T
models) using pilot bushing puller [SST: ST-16610001 (J-23907)]
(A) or suitable tool.
NOTE:
This figure shows CVT models as an example.
c.Lift the engine with a hoist to install it onto widely use engine stand.

CAUTION:
- Use the engine stand that has a load capacity [approximately 135 kg (298 lb) or more] large enough for supporting the engine weight.
- If the load capacity of stand is not adequate, remove the following parts beforehand to reduce the potential risk of overturning stand.
- Intake manifold: Exploded View.
- Catalyst converter: Exploded View (2WD models) or "AWD : Exploded
View" (AWD models).
- Rocker cover: Exploded View.
NOTE:

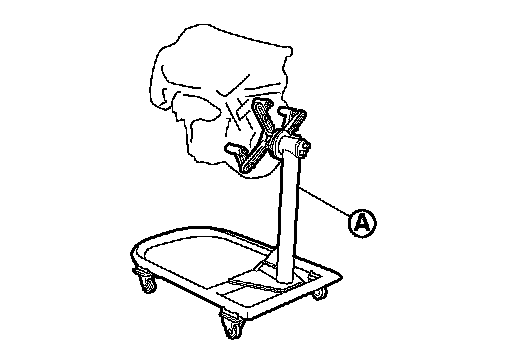

The figure shows an example of widely used engine stand (A)
that can support mating surface of transaxle with flywheel (M/T
models) or drive plate (CVT models) removed.

CAUTION:
Before removing the hanging chains, check the engine stand is stable and there is no risk of overturning.
3.Drain engine oil. Draining.

CAUTION:
Be sure to clean drain plug and install with new drain plug washer.

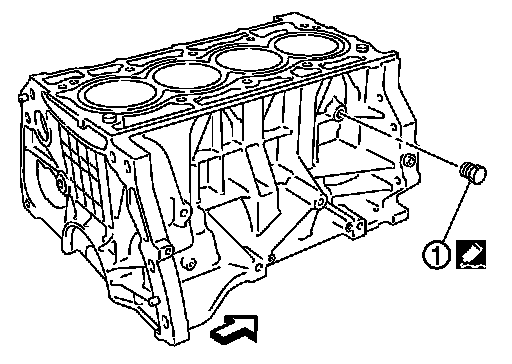

4.Drain engine coolant by removing water drain plug (1) from inside of the engine.

White arrow indicates : Engine Front

Tightening torque: Disassembly And Assembly.

Use Genuine RTV Silicon Sealant or equivalent. Recommended Chemical Products And Sealants
.
