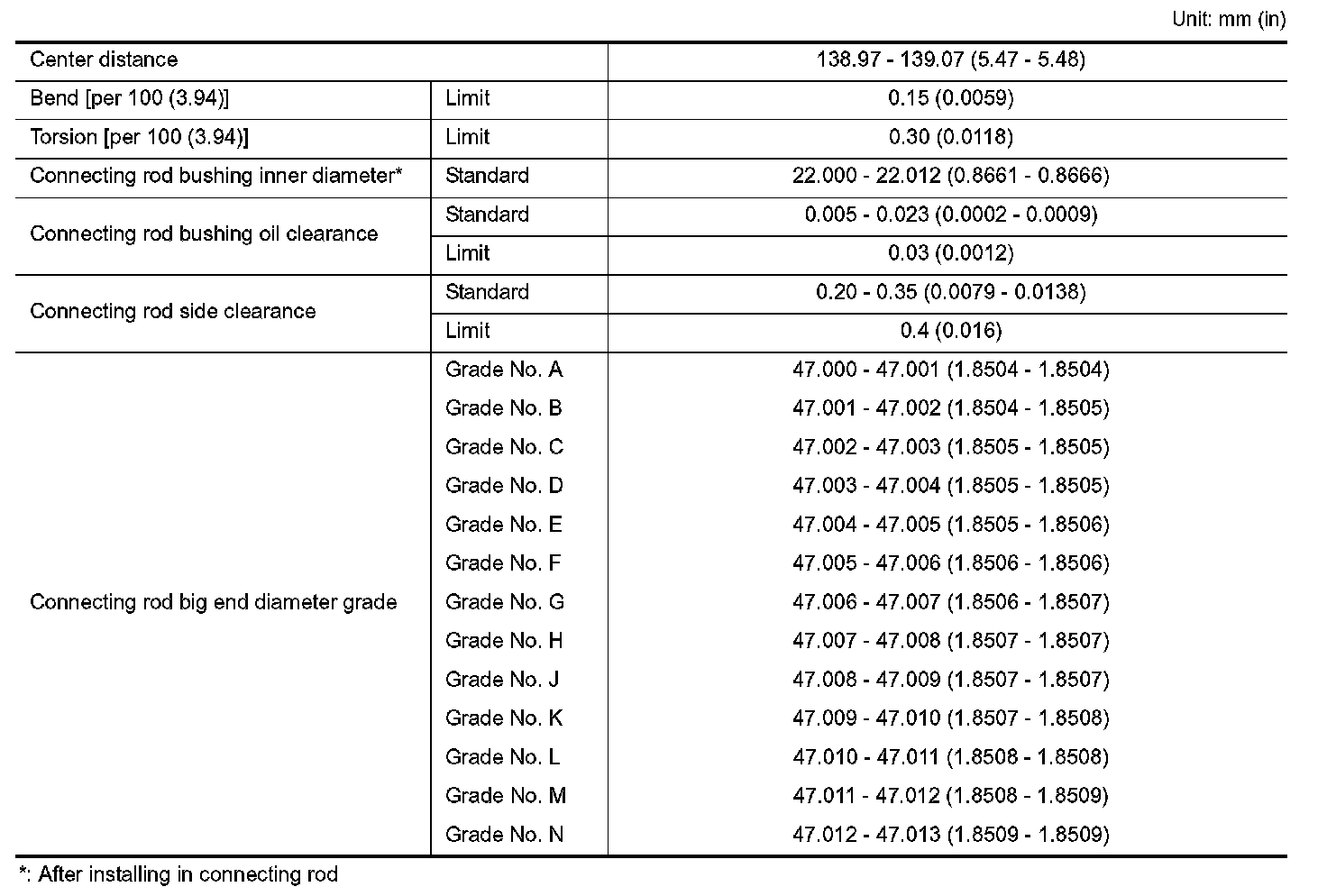

Connecting Rod: Specifications

CONNECTING ROD








Tighten connecting rod cap bolt with the following procedure:

CAUTION:

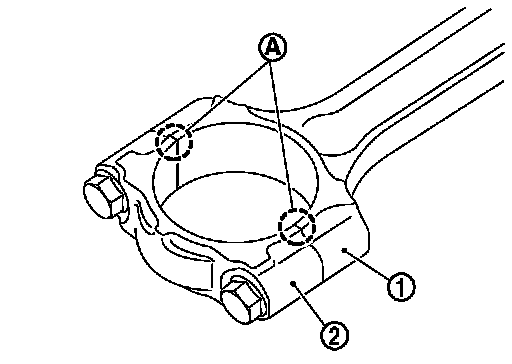

Check that there is no gap in the thrust surface (A) of the joint between connecting rod (1) and connecting rod cap (2) and that these parts are in the correct position. And then, tighten the connecting rod cap bolts.

If the connecting rod cap bolts are reused, measure the outer diameter.

Apply new engine oil to the threads and seats of connecting rod cap bolts.

Tighten connecting rod cap bolts.






Completely loosen connecting rod cap bolts






Tighten connecting rod cap bolts.






Then turn all connecting rod cap bolts 60 degrees clockwise (angle tightening).

CAUTION:






Check and confirm the tightening angle by using an angle wrench [SST: KV-10112100 (BT-8653-A)] (A) or protractor.

Never judge by visual inspection without the tool.

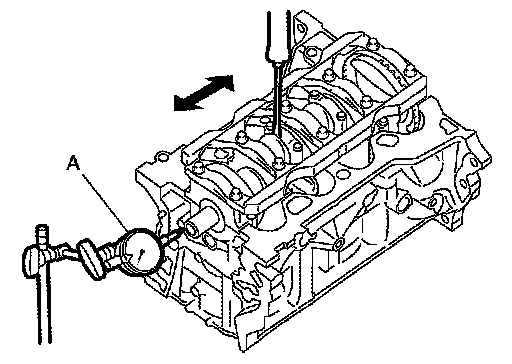

After tightening connecting rod cap bolt, check that crankshaft rotates smoothly.
