Rear Wheel Sensor
>>
Exploded View
Exploded View
WHEEL SENSOR

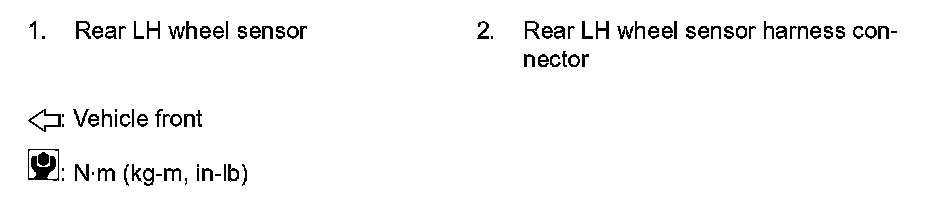

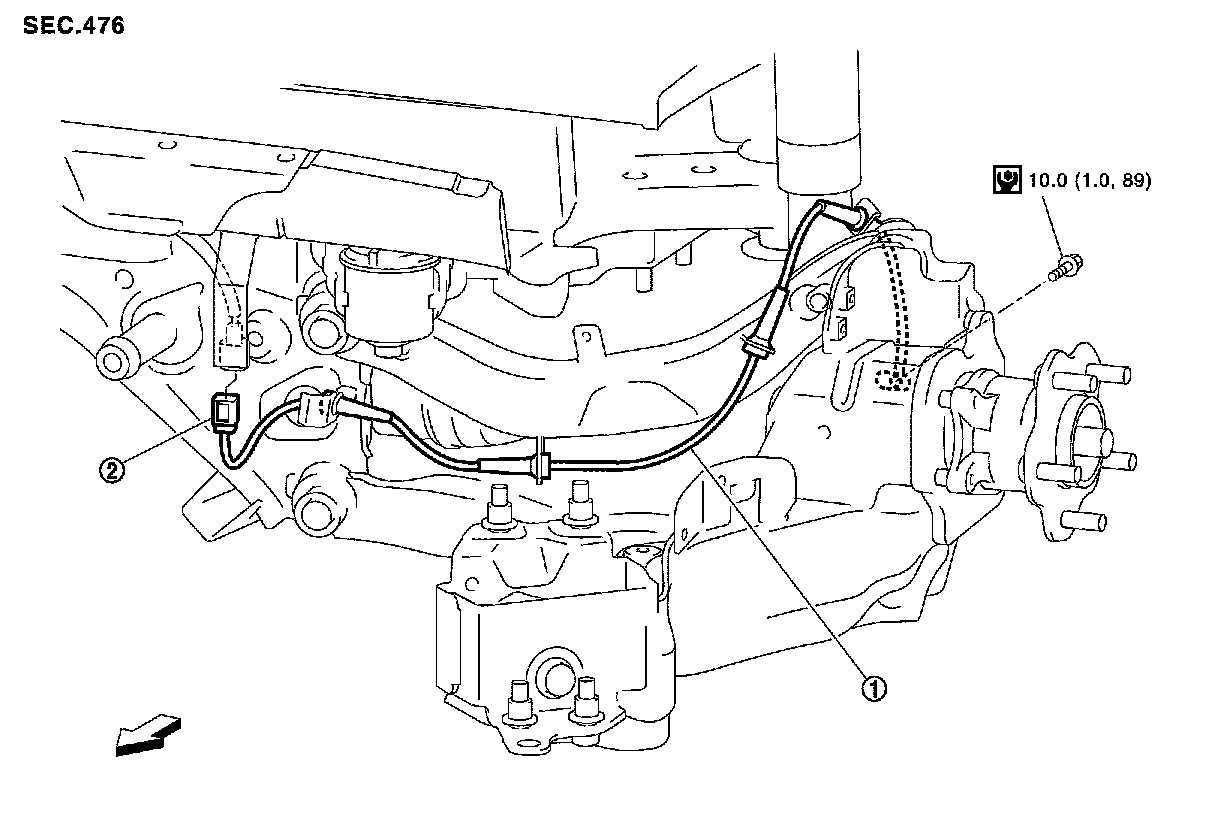

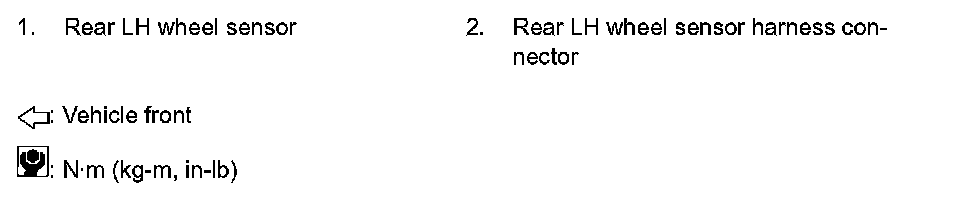

REAR WHEEL SENSOR : Exploded View

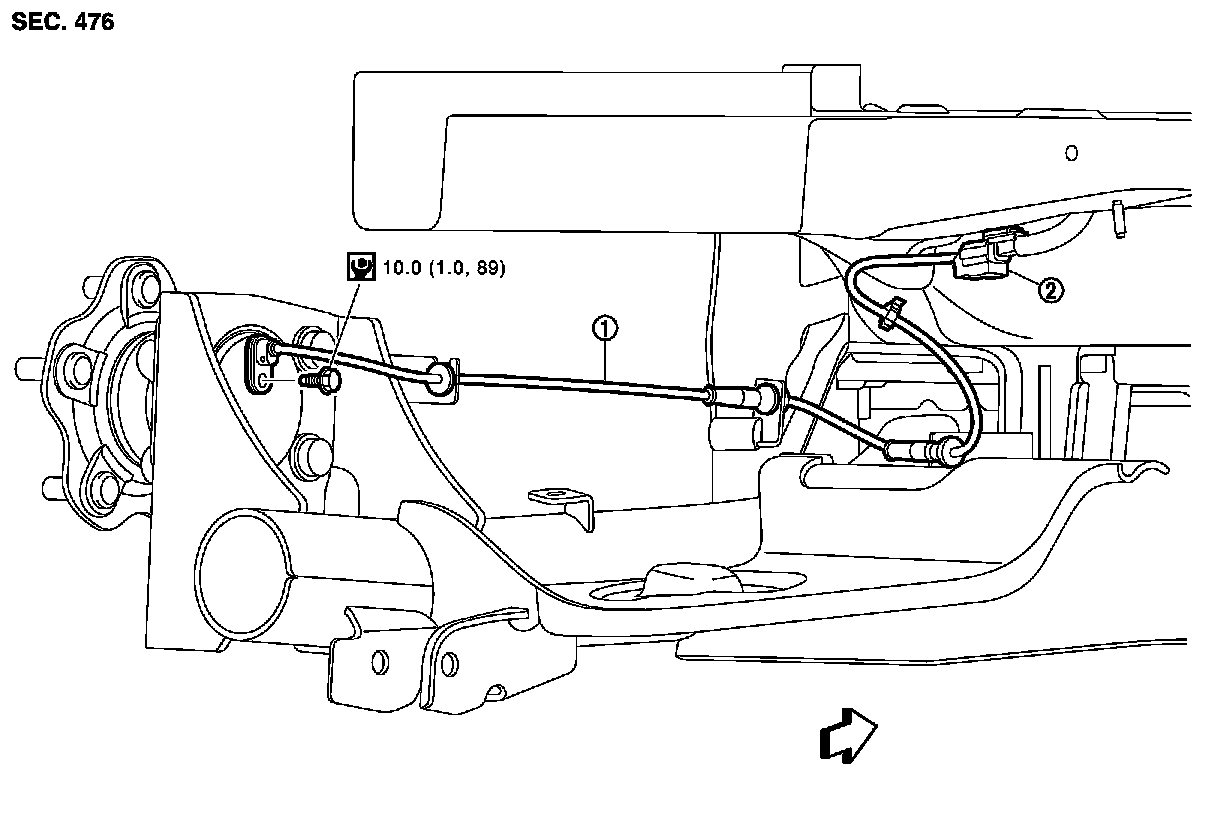

2WD

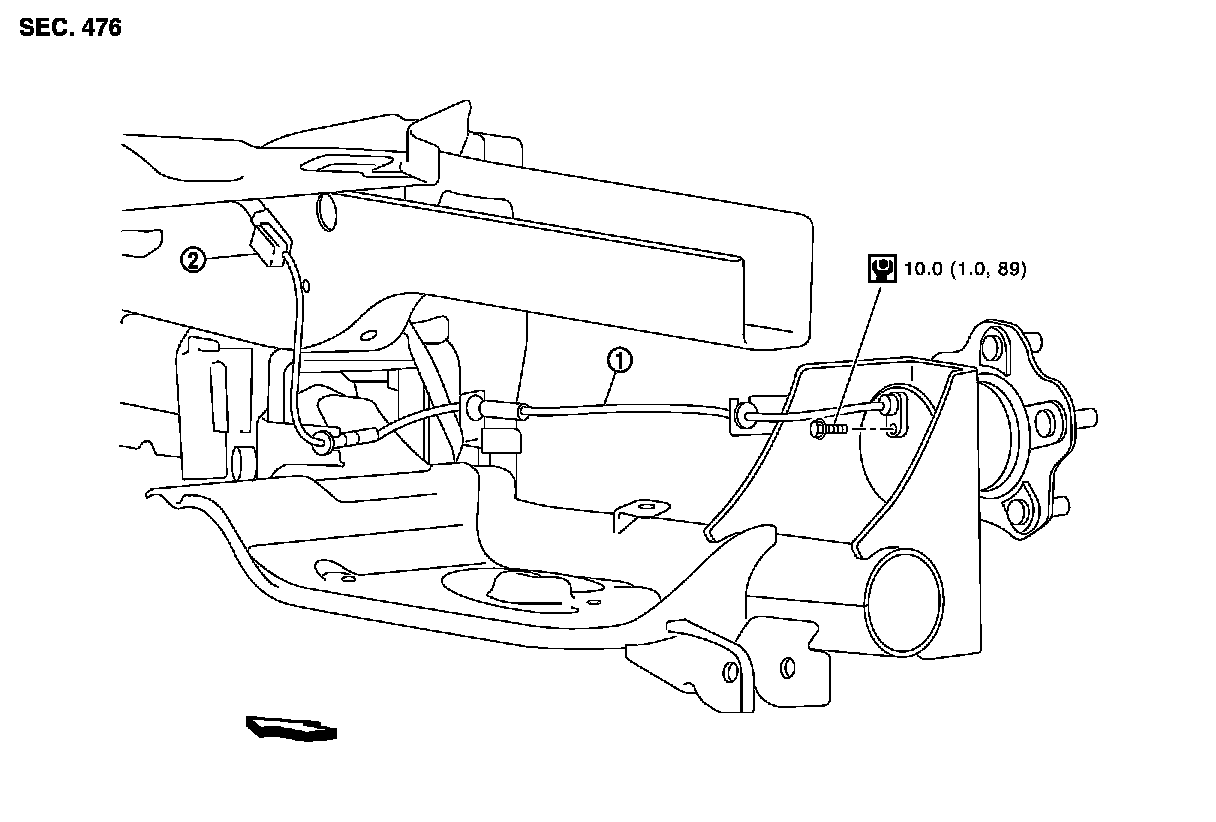

AWD
NOTE:

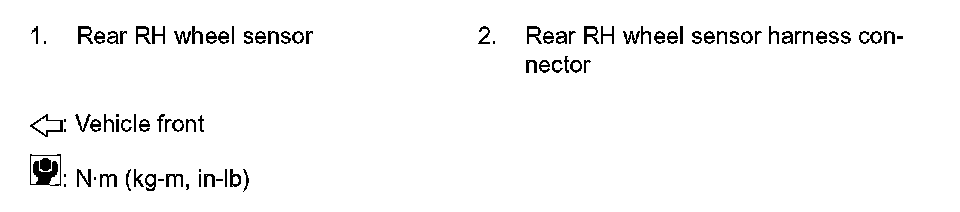

Rear RH wheel sensor is symmetrically opposite of LH.
