WHEEL SENSOR

FRONT WHEEL SENSOR : Removal and Installation


REMOVAL

1.Remove tires.
2.Remove the fender protector (front). Removal And Installation.
3.Remove front wheel sensor from steering knuckle.

CAUTION:
Never rotate and never pull front wheel sensor as much as possible, when pulling out.
4.Remove front wheel sensor harness from the vehicle.

CAUTION:
Never twist or pull front wheel sensor harness, when removing.

INSTALLATION

Note the following, and install in the reverse order of the removal.
- Check that there is no foreign material like iron powder or damage on inner surface of front wheel sensor mounting hole of steering knuckle and sensor rotor. Install after cleaning when there are foreign material like iron powder, or replace when there is a malfunction.

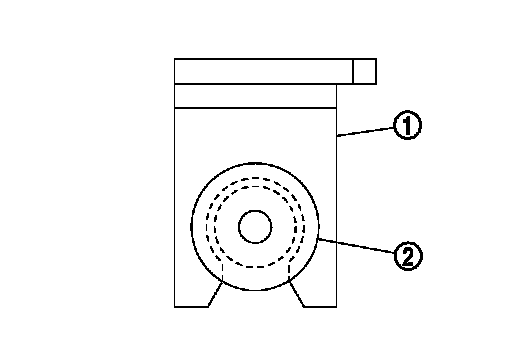

- Never twist front wheel sensor harness when installing front wheel sensor. Check that grommet (2) is fully inserted to bracket (1).
Check that front wheel sensor harness is not twisted after installation.
