Pinout Values and Diagnostic Parameters

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

Reference Value

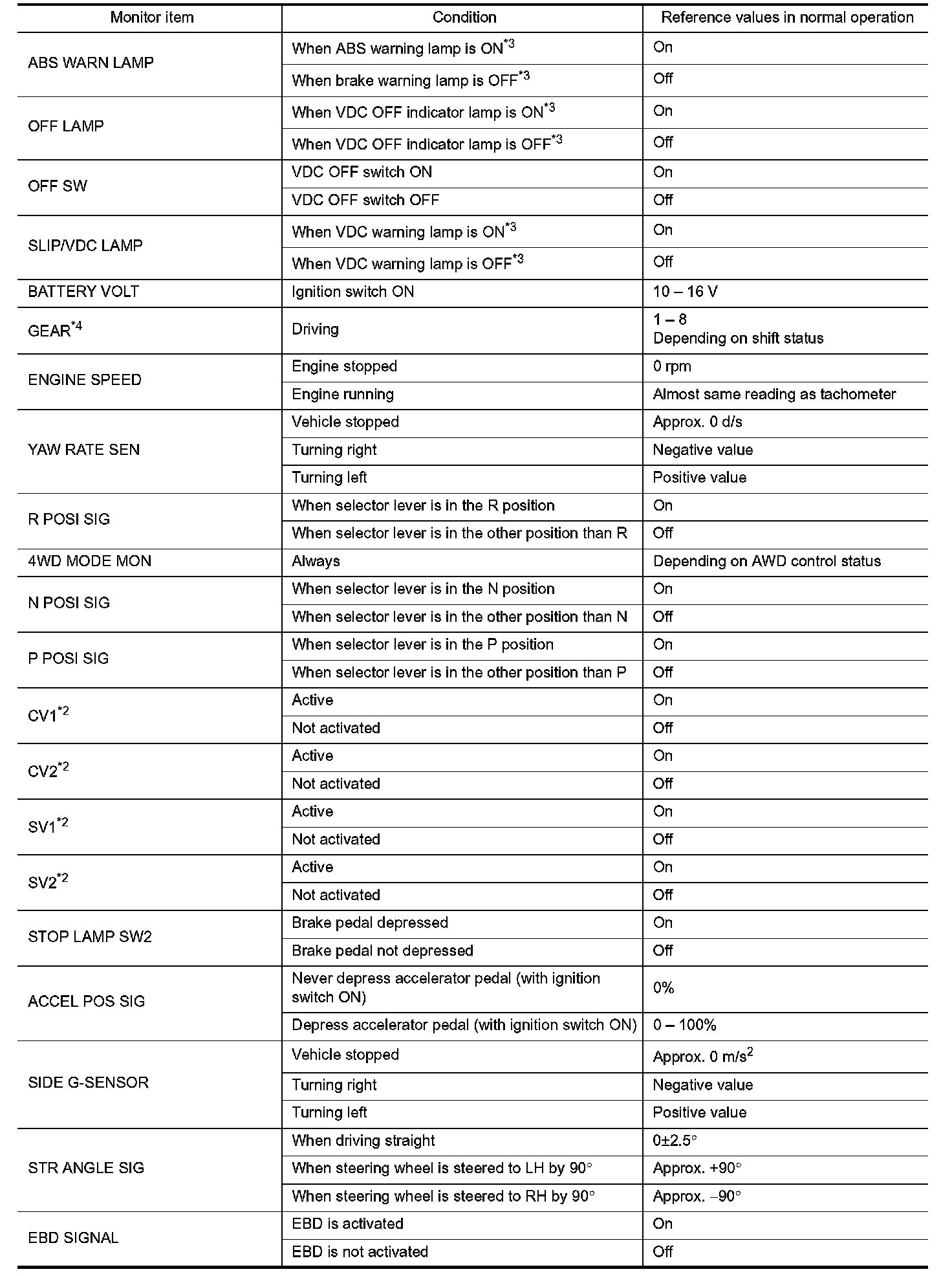

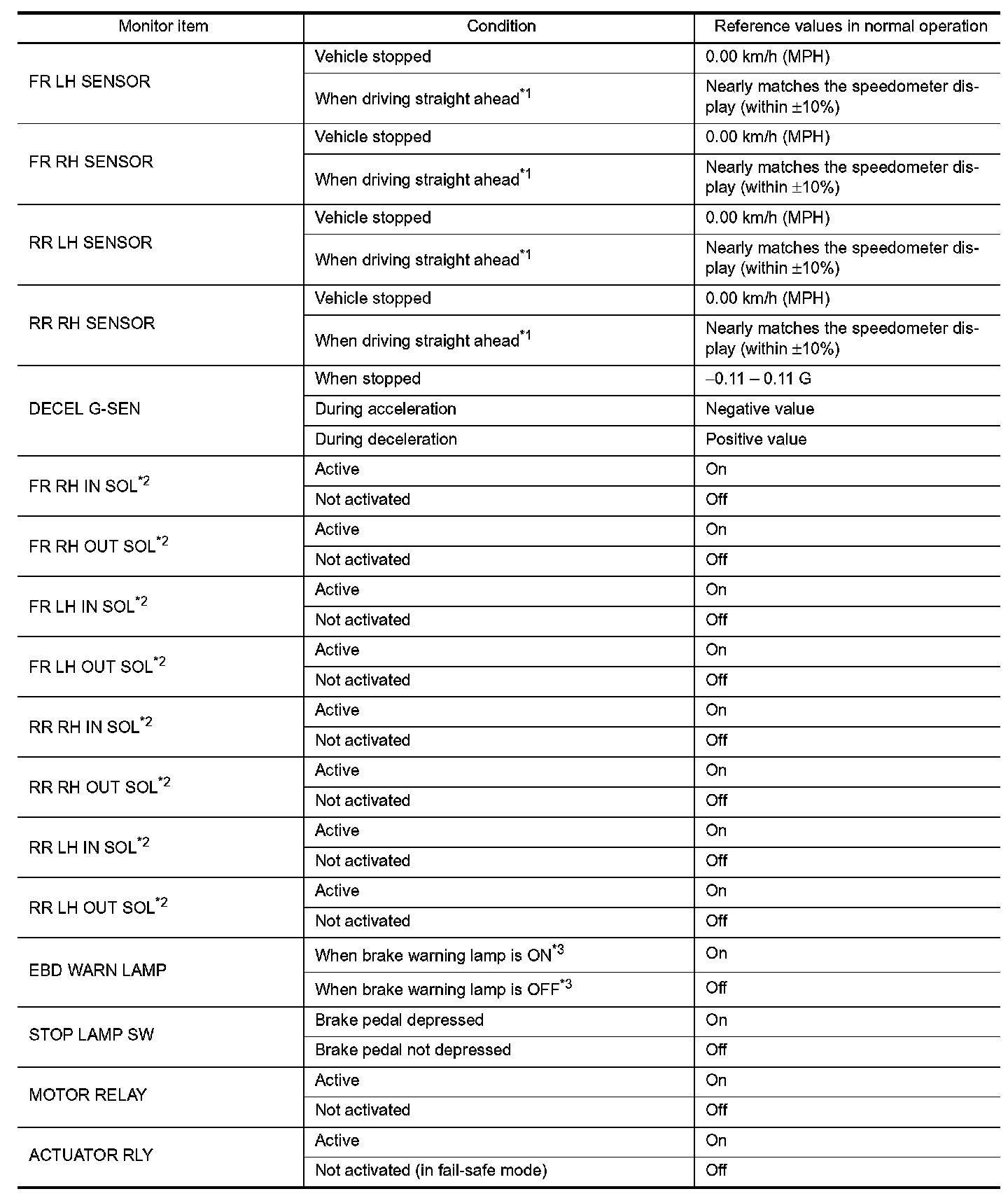

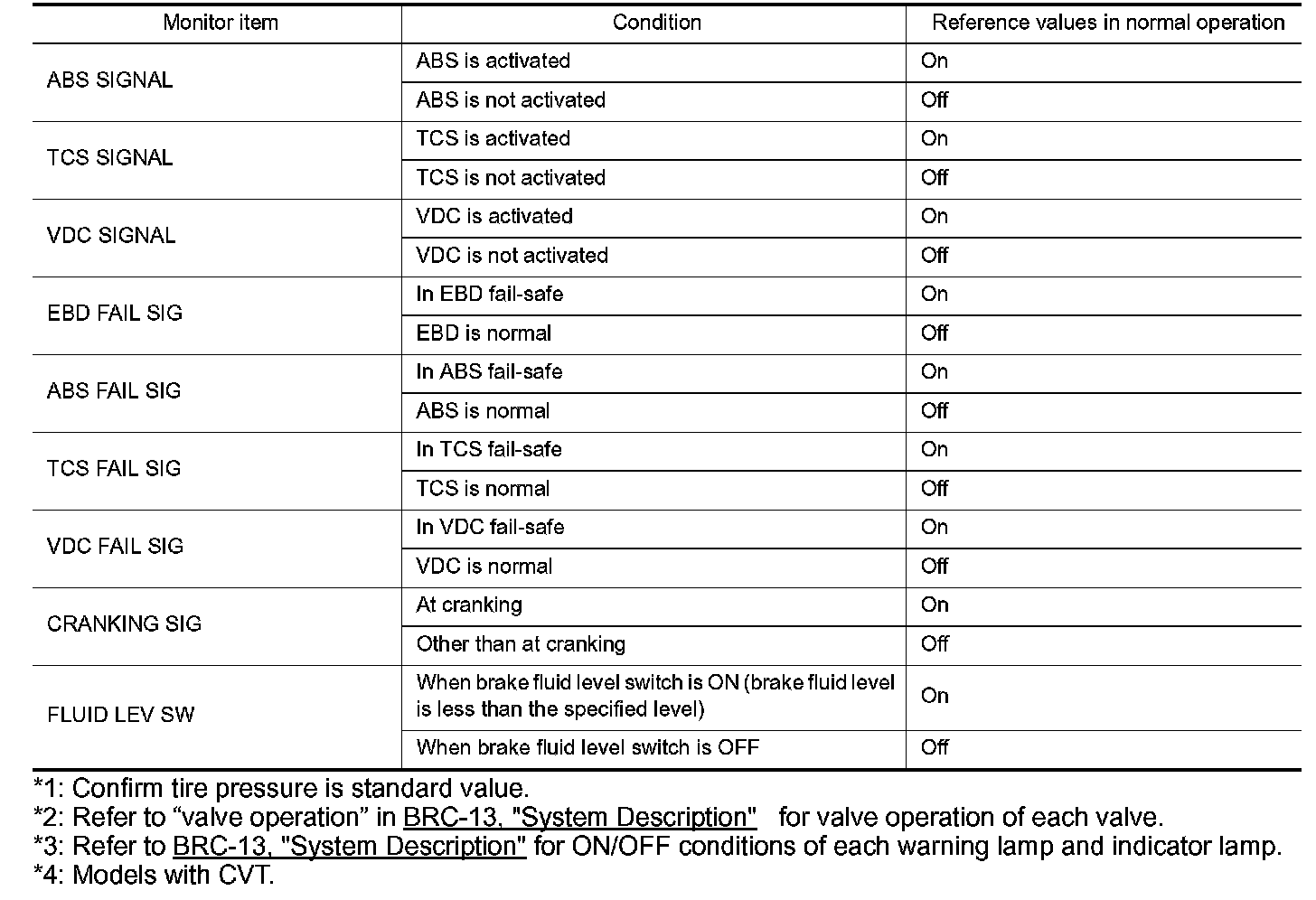

CONSULT DATA MONITOR STANDARD VALUE
















*1: Confirm tire pressure is standard value.
*2: Refer to "valve operation" in System Description for valve operation of each valve.
*3: System Description for ON/OFF conditions of each warning lamp and indicator lamp.
*4: Models with CVT.
