Seat Cushion

REAR SEAT

SEAT CUSHION : Removal and Installation


REMOVAL

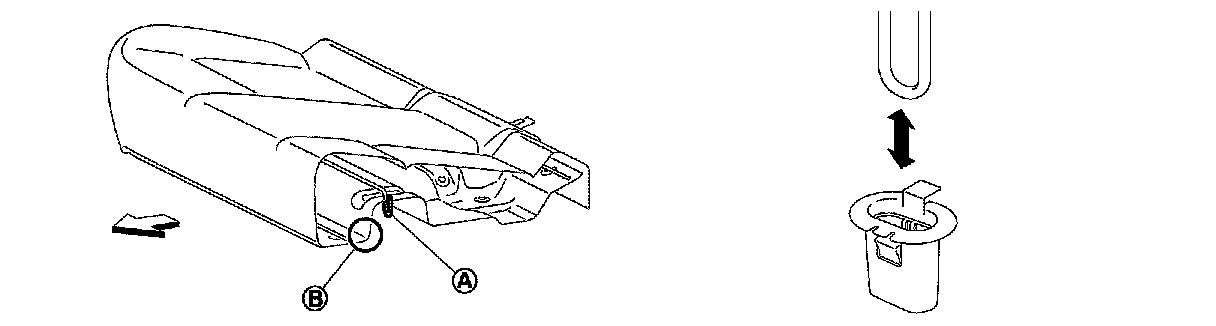

1.Lift up seat cushion at a close position (B) of engaging portion (A) and disengage seat cushion hook.






White arrow indicates : Vehicle front


CAUTION:
Seat cushion wire close to engaging portion deforms, if excessive force is applied to seat cushion front end when removing seat cushion.
To avoid the deformation, be careful to remove seat cushion while applying force to close position, as much as possible, of engaging portion.
2.Pull out seat belt buckle from seat cushion.
3.Remove seat cushion from the vehicle.

CAUTION:
When removing and installing, use shop cloths to protect parts from damage.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:
When removing and installing, use shop cloths to protect parts from damage.
