Removal and Installation

FRONT SEAT

Removal and Installation


REMOVAL


CAUTION:
Before servicing, disconnect the battery cable from negative terminal or remove the fuse.
1.Remove headrest.
2.Set the seatback vertically.
3.Slide seat to the frontmost position.
4.Remove rear outer mounting TORX bolt.
5.Remove rear inner mounting TORX bolt.
6.Slide seat to the rearmost position.
7.Remove front outer mounting TORX bolt.
8.Remove front inner mounting TORX bolt.
9.Remove seat cushion lower harness connectors and harness fixing clamps.

CAUTION:
Before performing removal operation, check the installation position of harness connectors and harness fixing clamps.
10.Remove seat from the vehicle.

CAUTION:
When removing and installing, use shop cloths to protect parts from damage.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:
- When removing and installing, use shop cloths to protect parts from damage.

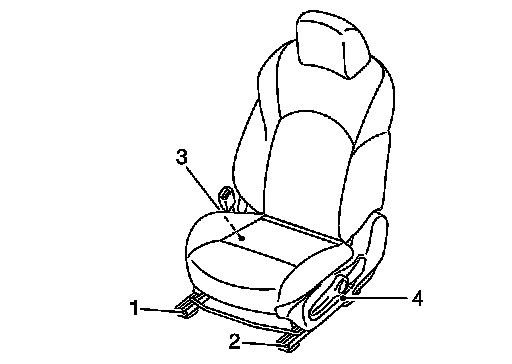

- When installing, tighten mounting TORX bolts according to the numerical order (1, 2, 3, and 4 as shown in the figure), starting from front inner mounting TORX bolt.
- Always fix the harness fixing clamp in position.
