Removal And Installation




SUNSHADE

Removal and Installation


REMOVAL

1.Remove headlining. Removal And Installation.

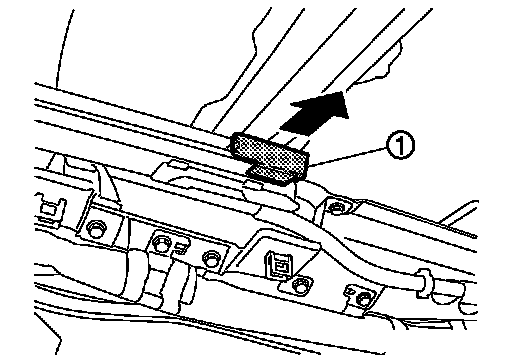

2.Remove the sunshade stopper (1) from the rear end of sunroof frame.
3.Remove the sunshade from the rear end of sunroof frame.

INSTALLATION

Install in the reverse order of removal.
