Removal And Installation

GLASS LID

Removal and Installation


REMOVAL


CAUTION:
- Always work with a helper.
- Fully close the glass lid, before removal, then never operate sunroof motor after removal.

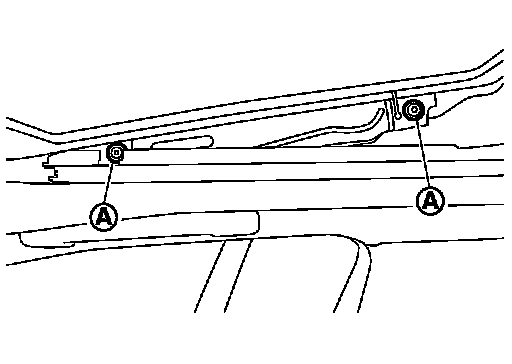

1.Remove glass lid mounting TORX bolts (A).
2.Remove glass lid from vehicle.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:
After installing the glass lid, perform the leak test and check the there is no malfunction.
NOTE:
After installation carry out fitting adjustment. Adjustments.
