Convertible Top: Testing and Inspection

POWER SUPPLY AND GROUND CIRCUIT

Diagnosis Procedure


SUNROOF MOTOR ASSEMBLY


1. CHECK GROUND CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect sunroof motor assembly harness connector.

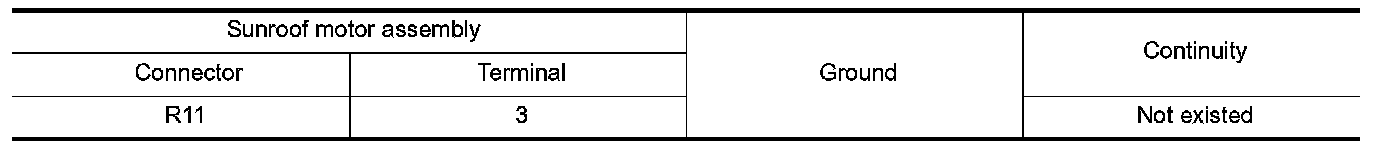

3.Check continuity between sunroof motor assembly harness connector and ground.





Is the inspection result normal?
YES- GO TO 2.
NO- Repair or replace harness or connector.

2. CHECK POWER SUPPLY CIRCUIT-I

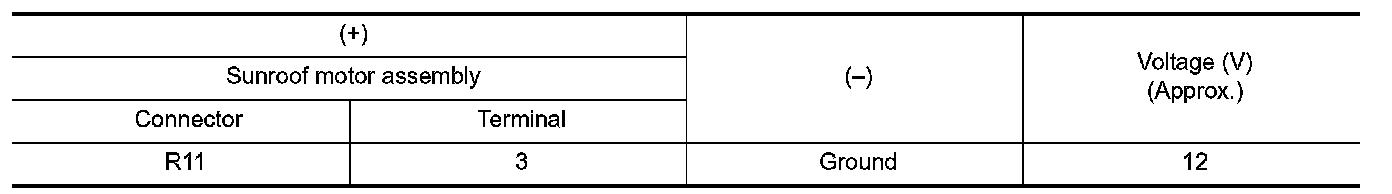

Check voltage between sunroof motor assembly harness connector and ground.





Is the inspection result normal?
YES- GO TO 4.
NO- GO TO 3.

3. CHECK SUNROOF MOTOR CIRCUIT-I

1.Disconnect BCM harness connector.

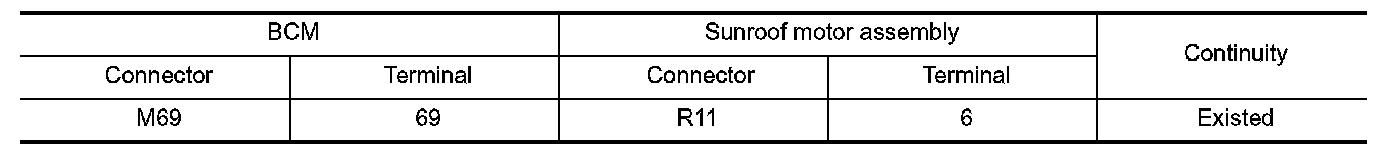

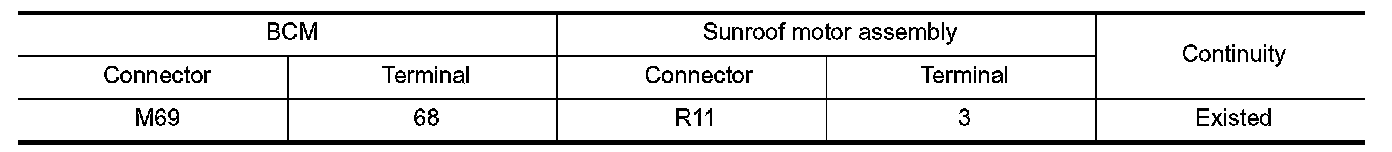

2.Check continuity between BCM harness connector and sunroof motor assembly harness connector.

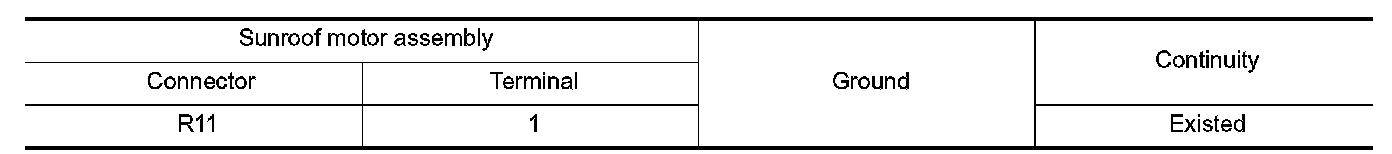

3.Check continuity between sunroof motor assembly harness connector and ground.





Is the inspection result normal?
YES- Check BCM. With Intelligent Key System.
NO- Repair or replace harness or connector.

4. CHECK POWER SUPPLY CIRCUIT-II

1.Turn ignition switch ON.

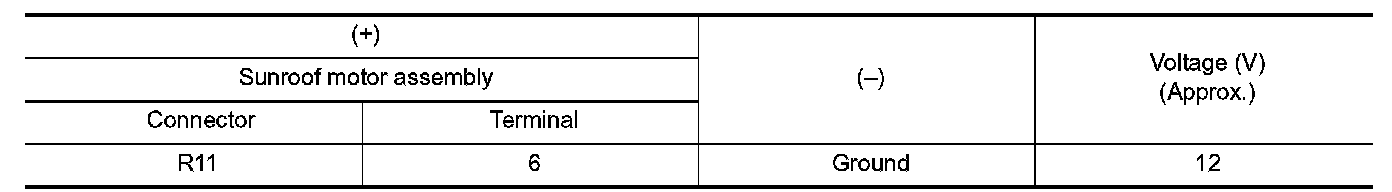

2.Check voltage between sunroof motor assembly harness connector and ground.





Is the inspection result normal?
YES- INSPECTION END
NO- GO TO 5.

5. CHECK SUNROOF MOTOR CIRCUIT-II

1.Turn ignition switch OFF.
2.Disconnect BCM harness connector.
3.Check continuity between BCM harness connector and sunroof motor assembly harness connector.





4.Check continuity between sunroof motor assembly harness connector and ground.





Is the inspection result normal?
YES- Check BCM. With Intelligent Key System.
NO- Repair or replace harness or connector.
