Door Lock
>>
Without Intelligent Key System
>>
Body Control System
Body Control System
DIAGNOSIS SYSTEM (
BCM
)
DOOR LOCK : CONSULT Function (
BCM
- DOOR LOCK)

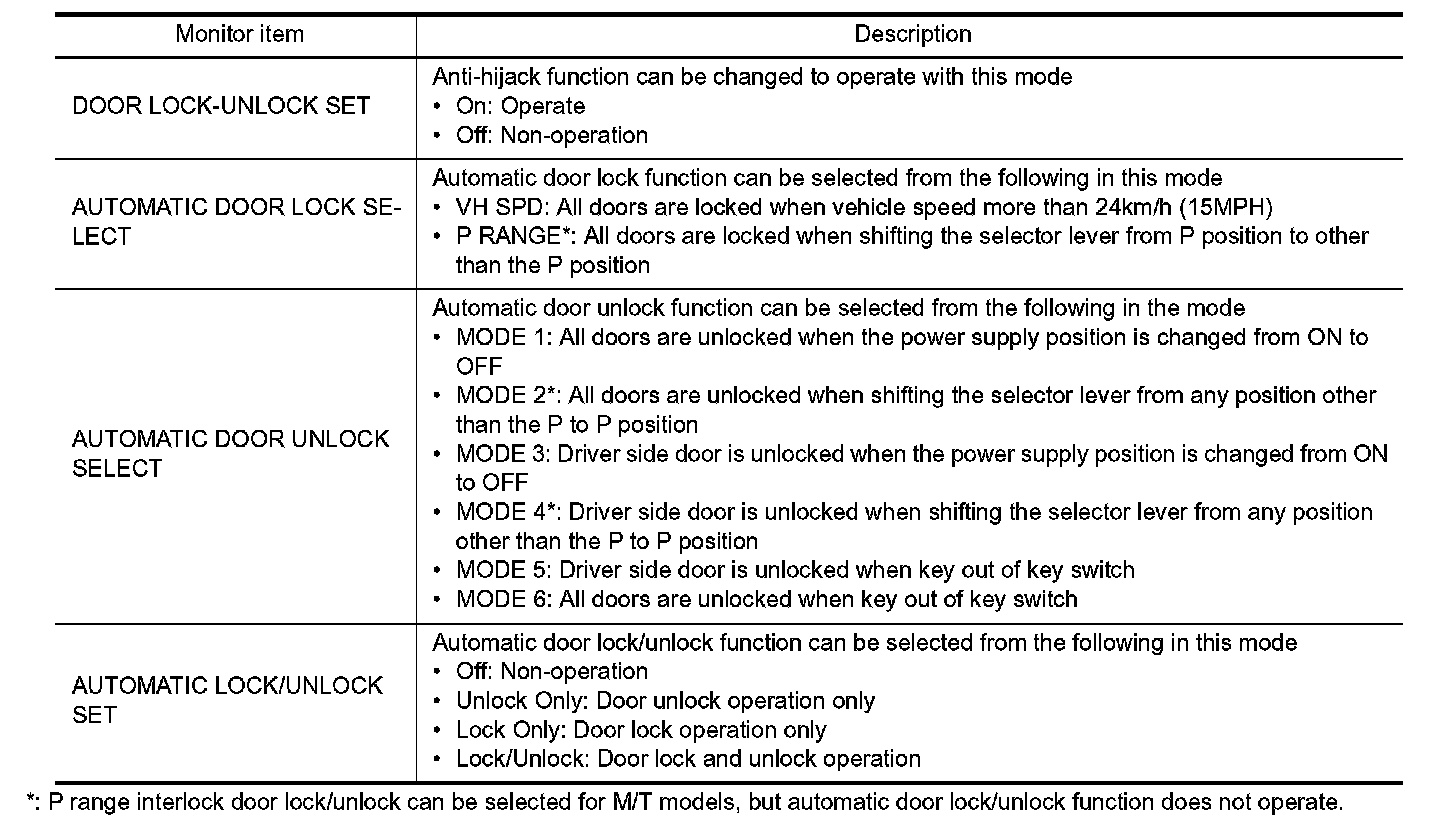

WORK SUPPORT

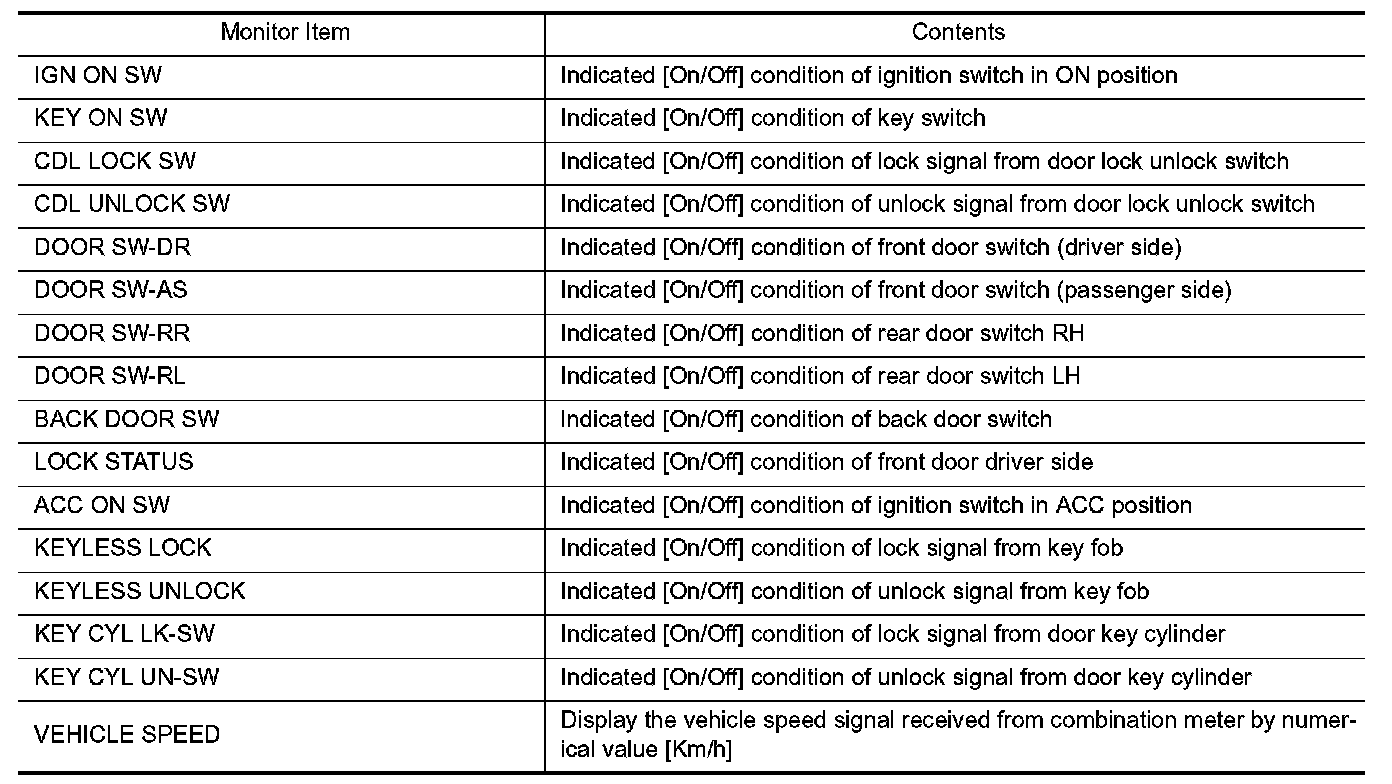

DATA MONITOR

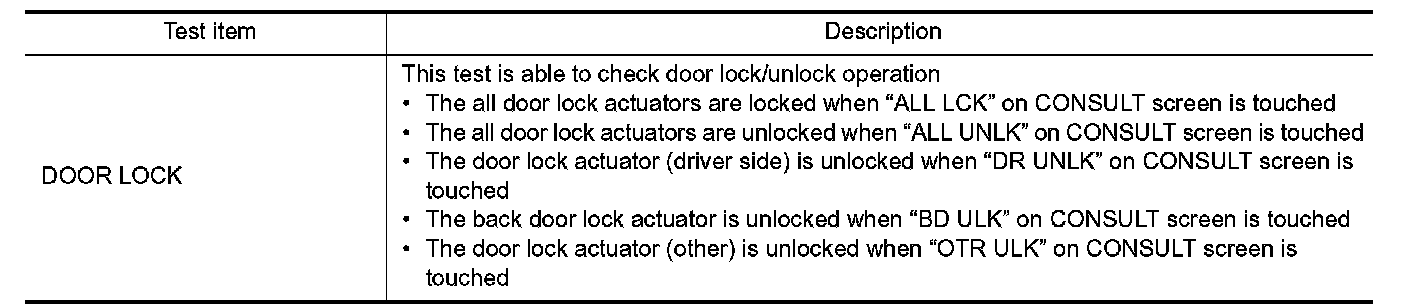

ACTIVE TEST
