With Intelligent Key System

DOOR LOCK ACTUATOR

REAR LH : Diagnosis Procedure


1. CHECK DOOR LOCK ACTUATOR INPUT SIGNAL

1.Turn ignition switch OFF.
2.Disconnect rear door lock assembly LH connector.

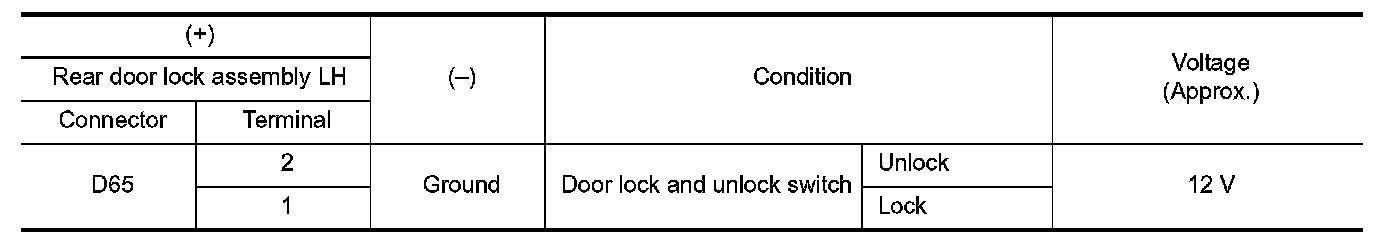

3.Check voltage between rear door lock assembly LH harness connector and ground.





Is the inspection result normal?
YES- Replace rear door lock assembly LH.
NO- GO TO 2.

2. CHECK DOOR LOCK ACTUATOR CIRCUIT

1.Disconnect BCM connector and all door lock assembly connector.

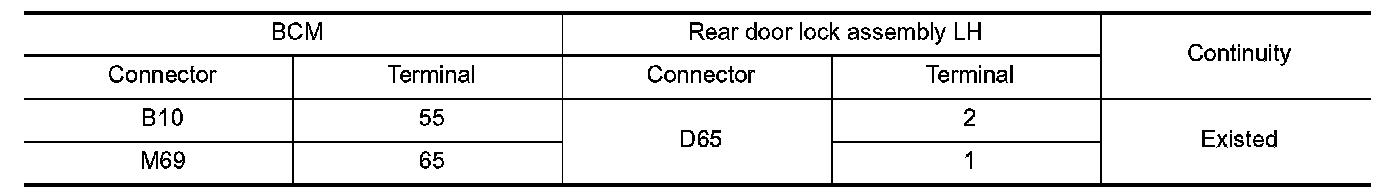

2.Check continuity between BCM harness connector and rear door lock assembly LH harness connector.

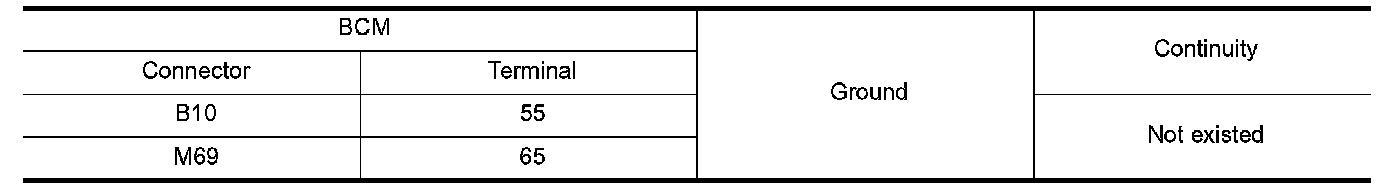

3.Check continuity between BCM harness connector and ground.





Is the inspection result normal?
YES- GO TO 3.
NO- Repair or replace harness.

3. CHECK BCM OUTPUT SIGNAL

1.Connect BCM connector.

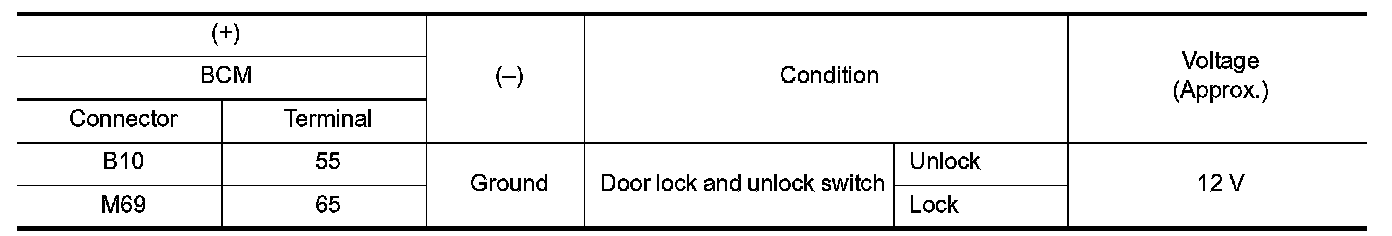

2.Check voltage between BCM harness connector and ground.





Is the inspection result normal?
YES- Check for internal short of each door lock actuator.
NO- Replace BCM. With Intelligent Key System.
