Home >> Nissan-Datsun >> 2012 >> Juke AWD L4-1.6L Turbo (MR16DDT) >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Keyless Entry Receiver >> Service and Repair >> With Intelligent Key System

With Intelligent Key System




REMOTE KEYLESS ENTRY RECEIVER

Removal and Installation


REMOVAL

1.Remove the glove box assembly. Removal And Installation.

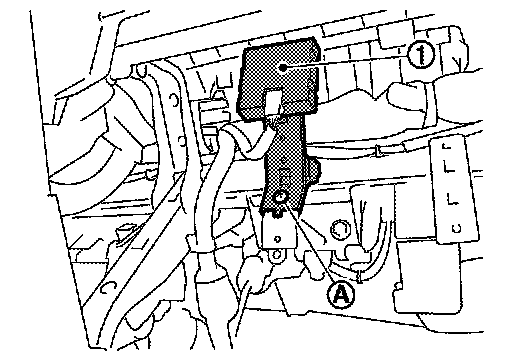

2.Remove the remote keyless entry receiver (1) mounting bolt (A), and then remove remote keyless entry receiver.

INSTALLATION

Install in the reverse order of removal.
