Rear Bumper




OUTSIDE KEY ANTENNA

REAR BUMPER : Removal and Installation


REMOVAL

1.Remove the rear bumper fascia. Removal And Installation.

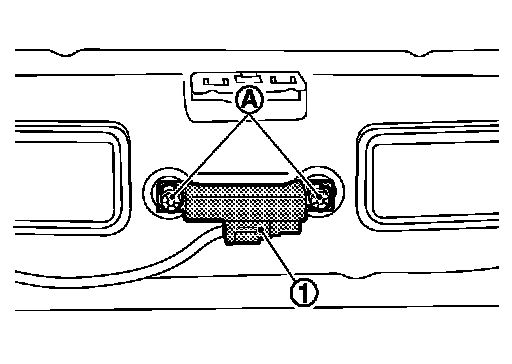

2.Remove the outside key antenna (rear bumper) (1) mounting clip (A), then remove outside key antenna (rear bumper).

INSTALLATION

Install in the reverse order of removal.
