Removal And Installation

INSIDE KEY ANTENNA

LUGGAGE ROOM : Removal and Installation


REMOVAL

1.Remove the luggage floor finisher. Luggage Floor Trim.

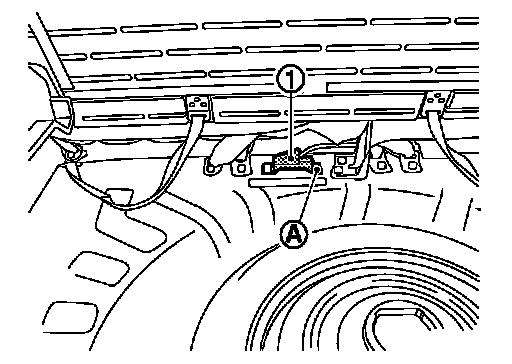

2.Remove the inside key antenna (luggage room) (1) mounting clip RH (A).

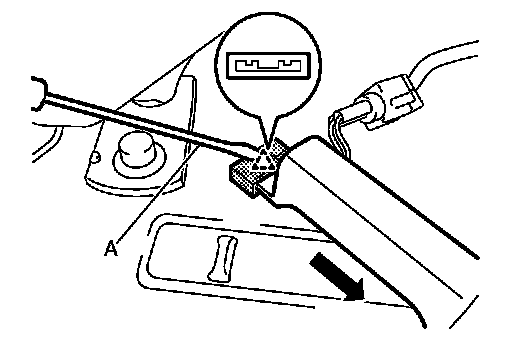

3.Disengage inside key antenna (luggage room) fixing clip using a flat-bladed screwdriver (A), and then pull out forward the inside key antenna (luggage room).

INSTALLATION

Install in the reverse order of removal.

CAUTION:
Visually check the clips for deformation and damage during installation.
Replace with new ones if necessary.
