Instrument Center

INSIDE KEY ANTENNA

INSTRUMENT CENTER : Removal and Installation


REMOVAL

1.Remove the multi display unit. Removal And Installation.

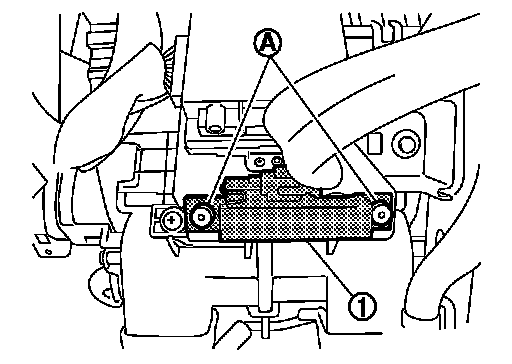

2.Remove the inside key antenna (instrument center) (1) mounting clip (A), and then remove inside key antenna (instrument center).

CAUTION:
Be careful not to drop mounting clip (A) into instrument panel.

INSTALLATION

Install in the reverse order of removal.
