Console

INSIDE KEY ANTENNA

CONSOLE : Removal and Installation


REMOVAL

1.Remove the center console assembly. Removal And Installation.

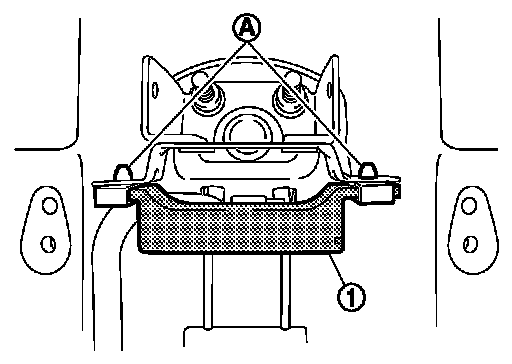

2.Remove the inside key antenna (console) (1) mounting clip (A), and then remove inside key antenna (console).

INSTALLATION

Install in the reverse order of removal.
