Dash Side Finisher

BODY SIDE TRIM

DASH SIDE FINISHER : Removal and Installation


REMOVAL


CAUTION:
Never damage the body.
1.Remove front kicking plate inner. Kicking Plate Inner.

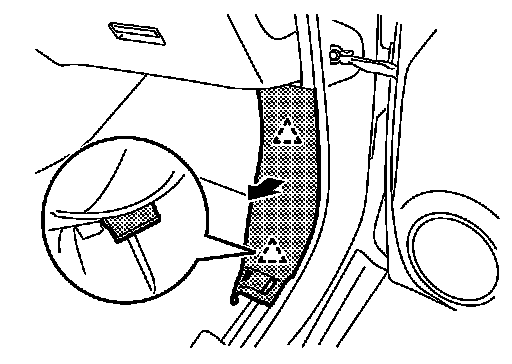

2.Pull back dash side finisher, and then disengage the pawls.

Broken triangle indicates : Pawl

3.Disconnect dash side finisher, vehicle front side, from stud bolt and remove dash side finisher.

INSTALLATION

Install in the reverse order of removal.
