FRONT FILLET MOLDING : Removal and Installation


REMOVAL

1.Remove front fillet molding fixing clips.

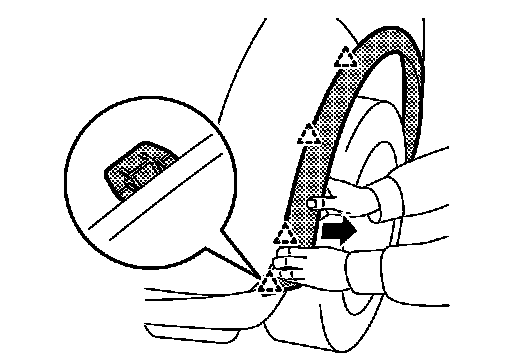

2.Remove front fillet molding front side fixing pawls.

Broken triangle indicates : Pawl

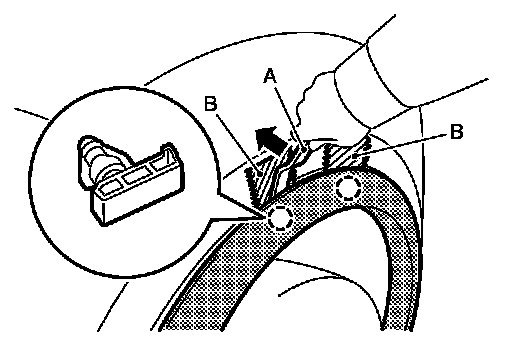

3.Using remover tool (A), disengage the clips from front fillet molding by starting from front side.

Broken circle indicates : Clip


CAUTION:
- Apply a protective tape (B) on the body to protect the painted surface from damage.
- Never pull fillet molding strongly.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:
- Always replace fillet molding fixing clips.
- When installing front fillet molding, check that blind clips and pawls are securely fitted in panel holes on body, and then press them in.
