Disassembly And Assembly

CENTER CONSOLE ASSEMBLY

Disassembly and Assembly


Disassembly and Assembly of Console Finisher Assembly


CAUTION:
When disassembling, always use a remover tool that is made of plastic.
DISASSEMBLY
1.Remove console finisher assembly. Removal And Installation.

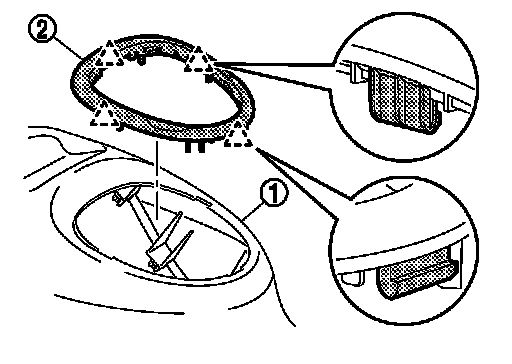

2.Remove console indicator finisher (CVT models)





Disengage connection of the console indicator finisher (2) fixing pawls from the inside of the console finisher assembly (1) toward the outside, and remove.

Broken triangle indicates : Pawl

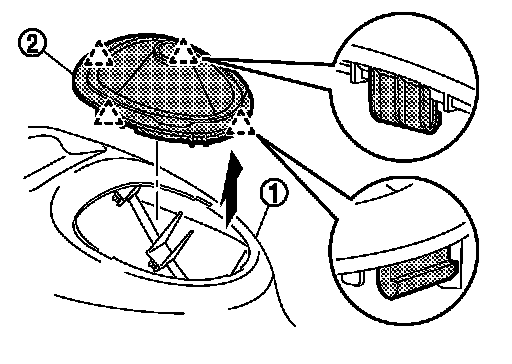

3.Remove console indicator finisher (MT models)





Disengage connection of the console boot (2) fixing pawls from the inside of the console finisher assembly (1) toward the outside, and remove.

Broken triangle indicates : Pawl

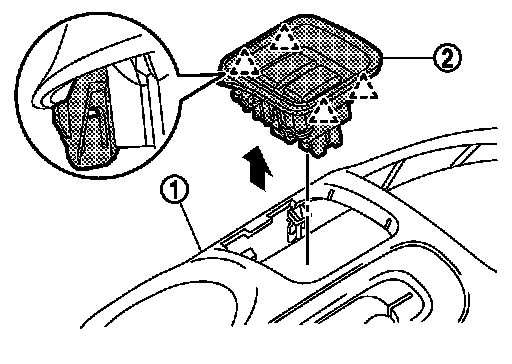

4.Remove console switch finisher.





Disengage connection of the console switch finisher (2) fixing pawls from the inside of the console finisher assembly (1)
toward the outside, and remove.

NOTE:
Remove seat heated switch. Removal And Installation.

Broken triangle indicates : Pawl

ASSEMBLY
Assemble in the reverse order of disassembly.
