Back Door Pull Handle

BACK DOOR TRIM

BACK DOOR PULL HANDLE : Removal and Installation


REMOVAL


CAUTION:
- When removing, always use a remover tool that is made of plastic.
- Never damage the back door panel.
1.Fully open back door.

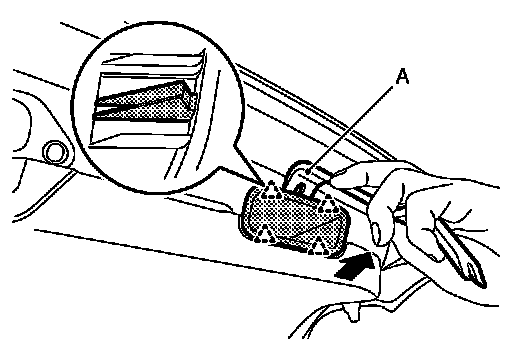

2.Disengage back door pull handle fixing pawls with a remover tool (A), and then remove back door pull handle.

Broken triangle indicates : Pawl


INSTALLATION

Install in the reverse order of removal.
