Back Door Lower Finisher

BACK DOOR TRIM

BACK DOOR LOWER FINISHER : Removal and Installation


REMOVAL


CAUTION:
- When removing, always use a remover tool that is made of plastic.
- Never damage the back door panel.
1.Fully open back door.
2.Remove rear parcel shelf finisher. (Models with rear parcel shelf finisher)

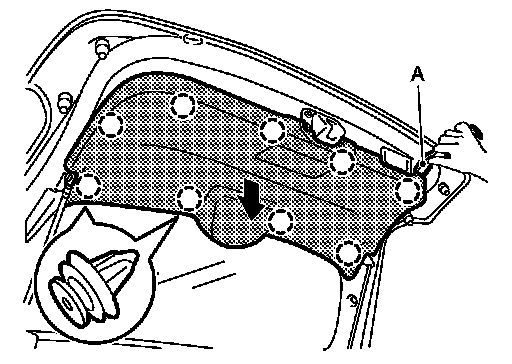

3.Disengage back door lower finisher fixing clips with a remover tool (A), and then remove back door lower finisher.

Broken circle indicates : Clip


INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:
When installing back door lower finisher, check that clips are securely in back door panel holes, and press them in.
