BACK DOOR

BACK DOOR HINGE : Removal and Installation


REMOVAL

1.Remove back door assembly. With Intelligent Key System.
2.Remove back door hinge mounting nuts (body side), and then remove back door hinge.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:
- After installation, check back door open/close, lock/unlock operation.
- After installation, perform the fitting adjustment. With Intelligent Key System.

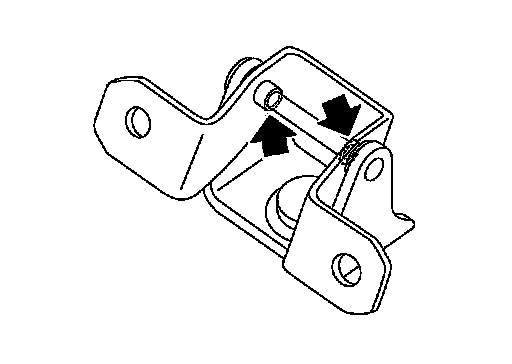

- Check back door hinge rotating part for poor lubrication. If necessary, apply body grease.
