Without Intelligent Key System

HOOD LOCK

HOOD LOCK CONTROL CABLE : Removal and Installation


REMOVAL

1.Disconnect hood lock control cable assembly from hood lock assembly.
2.Remove fender protector (LH). Removal And Installation.
3.Remove hood lock cable clip.

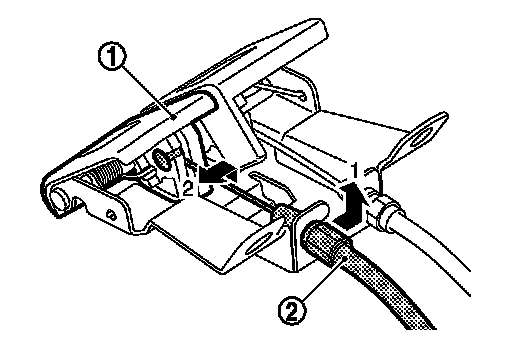

4.Remove hood lock control cable assembly of instrument lower panel (LH), and then remove fuel filler lid opener cable (2) from fuel filler lid opener lever (1).
5.Remove grommet on the lower dash, and pull the hood lock control cable toward the passenger compartment.

CAUTION:
While pulling, never to damage (peeling) the outside of hood lock control cable.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:
- Never to bend cable too much, keeping the radius 100 mm (3.937 in) or more.

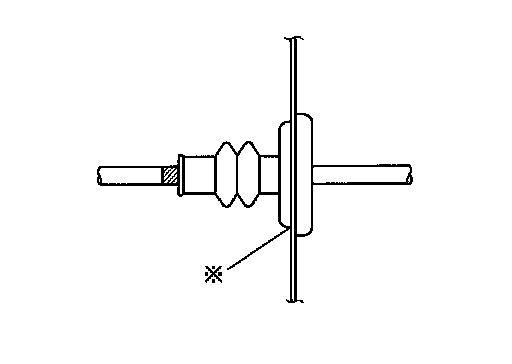

- Check that cable is not offset from the positioning grommet, and apply the sealant to the grommet (at * mark) properly.
- Check that hood lock control cable is properly engaged with hood lock.
- After installation, perform hood fitting adjustment. Without Intelligent Key System.
- After installation, perform hood lock control inspection. Without Intelligent Key System.
