Without Intelligent Key System

FUEL FILLER LID OPENER

FUEL FILLER LID : Removal and Installation


REMOVAL

1.Fully open fuel filler lid.

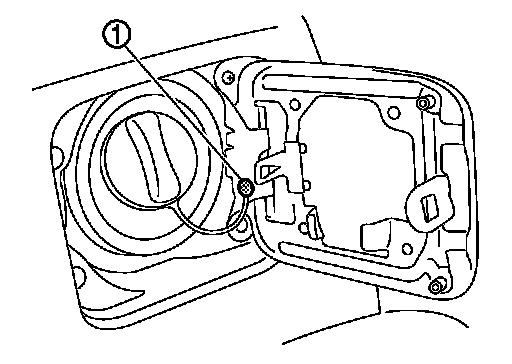

2.Remove fuel mounting pin (1).
3.Remove mounting screws, and then remove fuel filler lid.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:
- After installation, check fuel filler lid assembly open/close, lock/unlock operation.
- After installation, apply the touch-up paint (the body color) onto the head of the mounting screws.
NOTE:

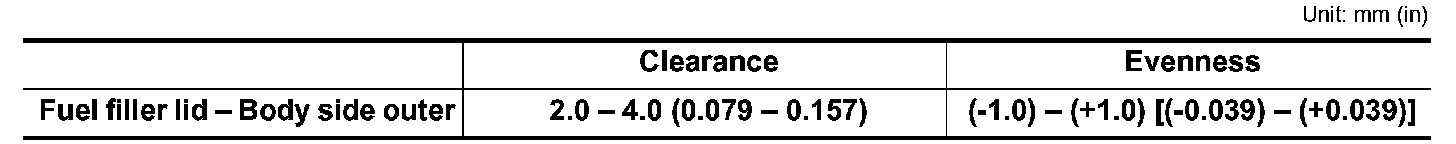

- The following table shows the specified values for checking normal installation status.
- Fitting adjustment cannot be performed.
